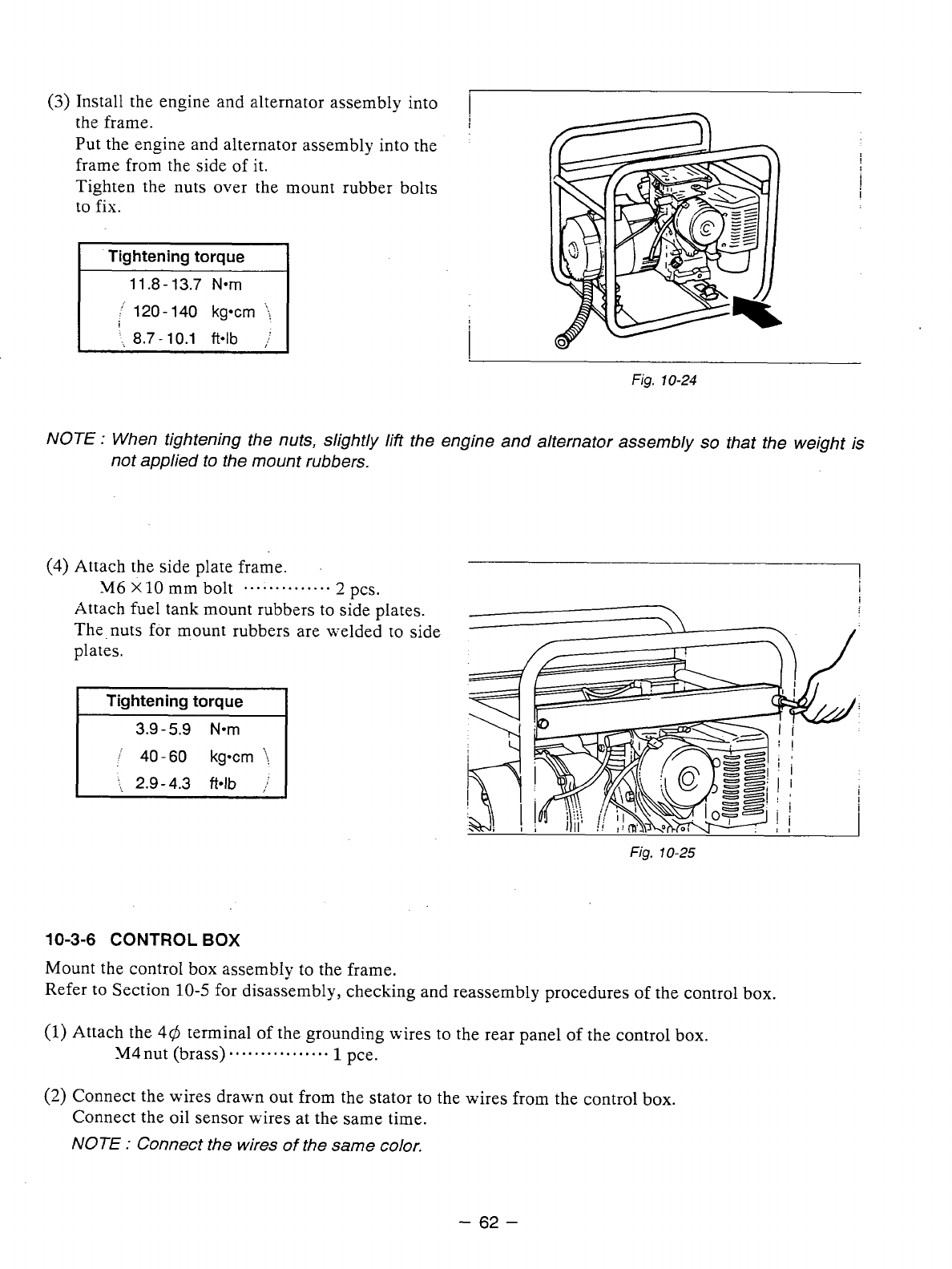

Install the engine and alternator assembly into
the frame.
Put the engine and alternator assembly into the
frame from the side of it.
Tighten the nuts over the mount rubber bolts
to
fix.
Tightening torque
1 1.8
-
13.7
Nom
:.
120
-
140
kg*cm
.i
’,
8.7
-
10.1
ft*lb
;
Fig.
10-24
NOTE
:
When tightening the nuts, slightly lift the engine and alternator assembly
so
that the weight is
not applied to the mount rubbers.
(3)
Attach the side plate frame.
M6
x
10
mm bolt
..............
2
pcs.
Attach fuel tank mount rubbers to side plates.
The.nuts for mount rubbers are welded to side
plates.
3.9
-
5.9
Nom
....
2.9-4.3
ft4b
:
Fig.
10-25
10-3-6
CONTROL
BOX
Mount the control box assembly to the frame.
Refer to Section
10-5
for disassembly, checking and reassembly procedures
of
the control box.
(2)
Connect the wires drawn out from the stator to the wires from the control
box.
Connect the oil sensor u-ires at the same time.
NOTE
:
Connect the wires
of
the same color.
-
62
-
