FUEL

TANK

1)

Connect the rubber pipe to the engine carburetor and fasten

it

with a hose clamp. Attach the banjo to

the opposite end

of

the rubber pipe, tighten it with a hose clamp, and fasten the pipe to the fuel

strainer with the banjo bolt.

2)

Fasten the strainer to the strainer bracket with the joint nuts.

3)

Mount

the

fuel tank

on

the side plates with rubber (fuel tank) between them.

NOTE

:

For easy tank assembly, glue the rubber (fuel tank) over the holes on the side plates.

4)

Connect the rubber pipe

First,

fit

the hose clamps

on

the rubber pipe, connect the strainer and fuel tank, then fasten the rubber

pipe with the hose clamps.

NOTE

:

Apply a drop of oil

to

the rubber pipe

so

that it may easily

be

connected

to

the strainer and the

fuel tank.

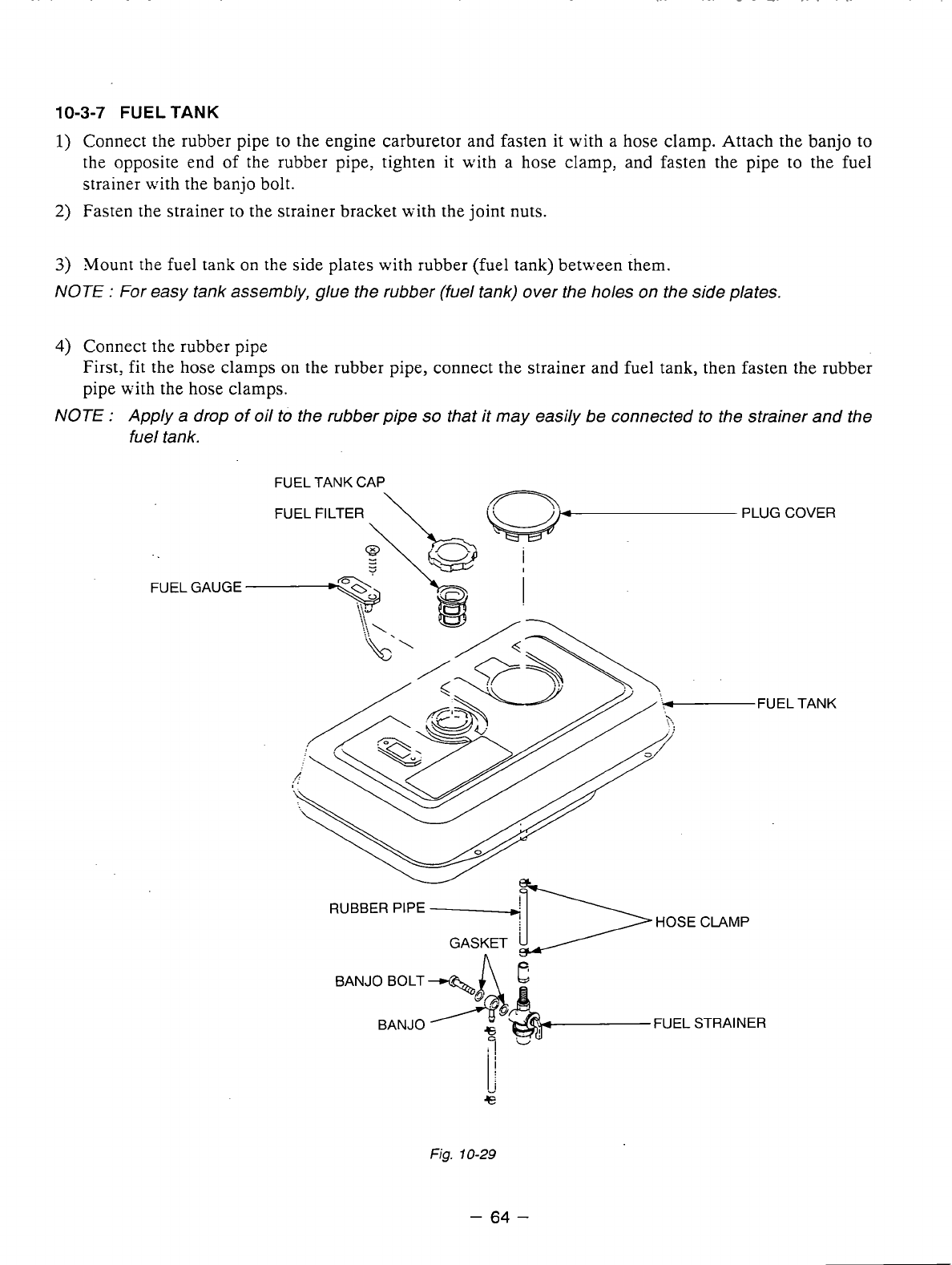

FUEL GAUGE

RUBBER PIPE

GASKET

.FUEL TANK
