Rosemount 3300 Series
4-18
6HWXS,QIR The 7LWOH tab shows information about the connected transmitter.

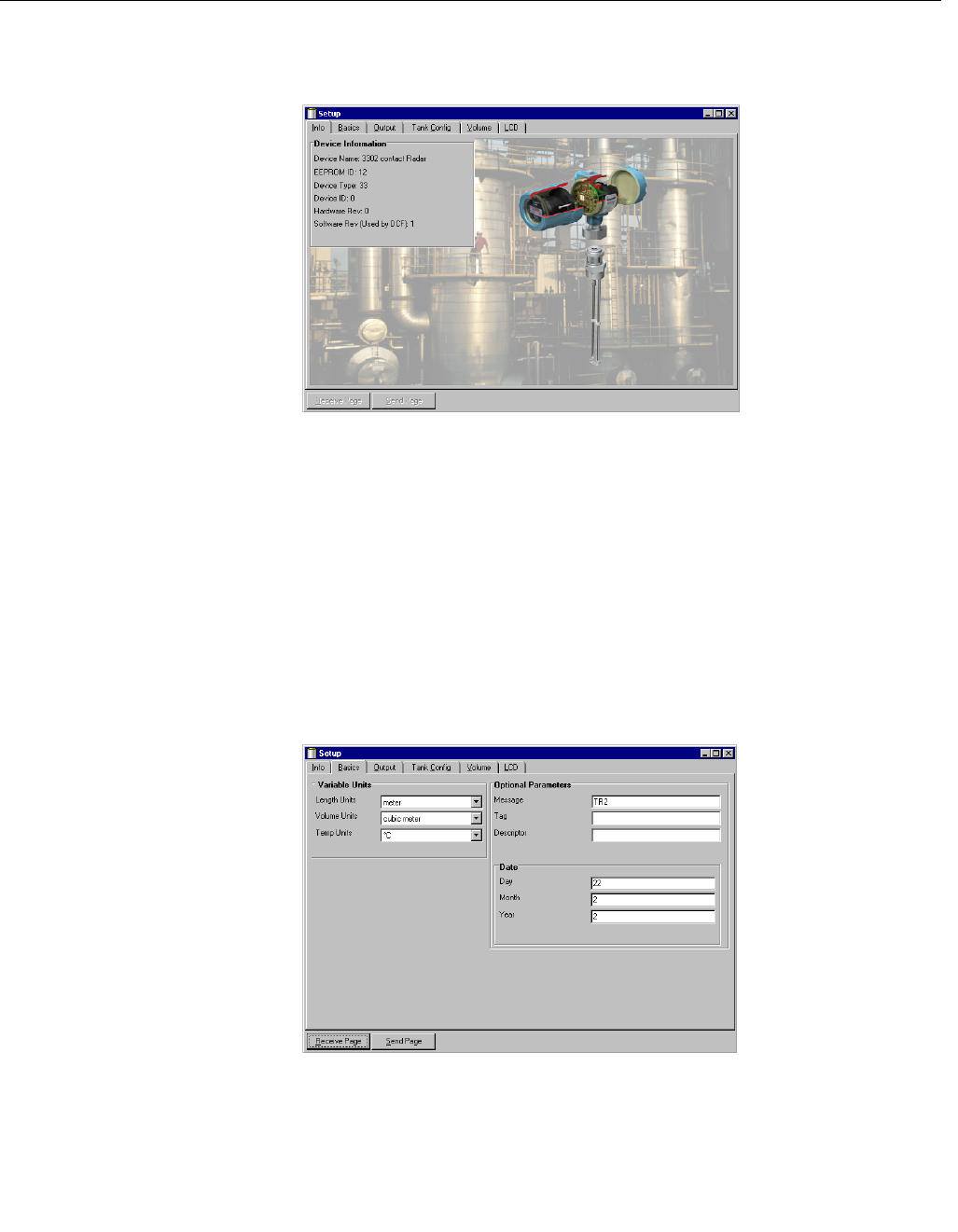

Figure 4-13. Setup Title tab
Device Name: designation of the current transmitter model.
EPROM ID:current transmitter database version.
Device Type: designates the transmitter type. 33 is used for the 3300 Series.
Device ID: a unique identifier for each 3300 Series transmitter.
Hardware Rev: the current revision of the transmitter electronic board.
Software Rev:the current revision of the transmitter software that controls
measurement, communication, internal checks etc.
6HWXS%DVLFV The %DVLFV tab lets you choose 0HDVXUHPHQW8QLWV for Level, Volume and
Temperature. These units are used wherever measurement and configuration
data is presented.
Figure 4-14. Setup Basic tab
This window also allows you to enter some general information about the
transmitter like Message, Tag, Descriptor and Date. This information is not
required for the operation of the transmitter and can be left out if desired.
