95

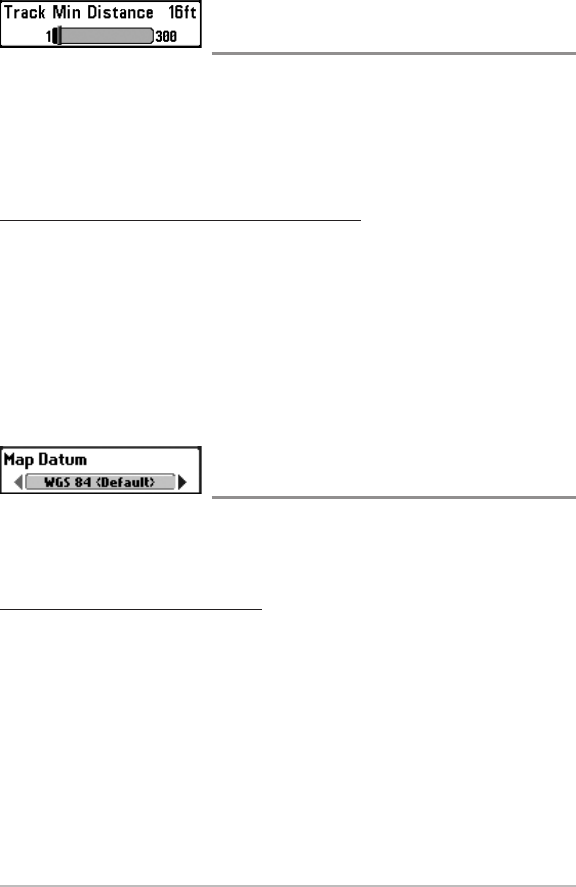

Track Min Distance
(Advanced)
Track Min Distance allows you to set a minimum distance of travel before a
trackpoint is added to the track. The Track Min Distance menu option is available
when User Mode is set to Advanced (see Main Menu: User Mode).
NOTE: Track Min Distance works in conjunction with Trackpoint Interval. Both
conditions must be met before a trackpoint is added to the current track.
To change the Track Minimum Distance setting:
1. Make sure the User Mode is set to Advanced, then highlight Track Min
Distance on the Navigation main menu.
2. Press the LEFT or RIGHT Cursor keys to change the Track Min Distance
setting. (1 to 300 feet or 1 to 100 meters [International Units only],
Default = 16 ft, 5 m)
NOTE: During slow travel or drift, setting both Trackpoint Interval and Track Min
Distance to small values will allow you to increase the track resolution.
Map Datum
(Advanced)
Map Datum allows you to change the map coordinate system used by the
Fishfinder to match those of a paper map. The Map Datum menu option is
available when User Mode is set to Advanced (see Main Menu: User Mode).
To change the Map Datum setting:
1. Make sure the User Mode is set to Advanced, then highlight Map
Datum on the Navigation main menu.
2. Press the LEFT or RIGHT Cursor keys to change the Map Datum setting.
(Default = WGS 84)
Navigation Menu Tab
