Page 24 GPS chartplotters
“VIDEO”. If “VIDEO” is pressed, the soft keys will be assigned this way: “INPUT 2”, “INPUT 1”,
“A
UTO SWITCH”. From now on, the functioning is identical to case 2.
2.13 OPTIONAL C-MAP NT
+
CARTOGRAPHY
STANDARD HORIZON has taken advantage of C-MAP’s experience with professional
navigation, by allowing the use of the refined and improved cartography called NT
+
. The new
cartography of NT
+
makes creative use of colors, patterns and icons to increase the
familiarity and usability of the much larger coverage database of NT
+
. NT
+
is supplied by
C-MAP in four sizes Local, Standard, Wide and SuperWide. For convenience the older NT
and the NT
+
are both compatible with all STANDARD HORIZON chartplotters. Contact
C-MAP USA at (508) 477-8010 or visit
www.c-map.com for further information on NT
+
.
2.14 INSERTING THE C-CARD
Hold the C-CARD by the long inclined side so that you can see the C-MAP label.

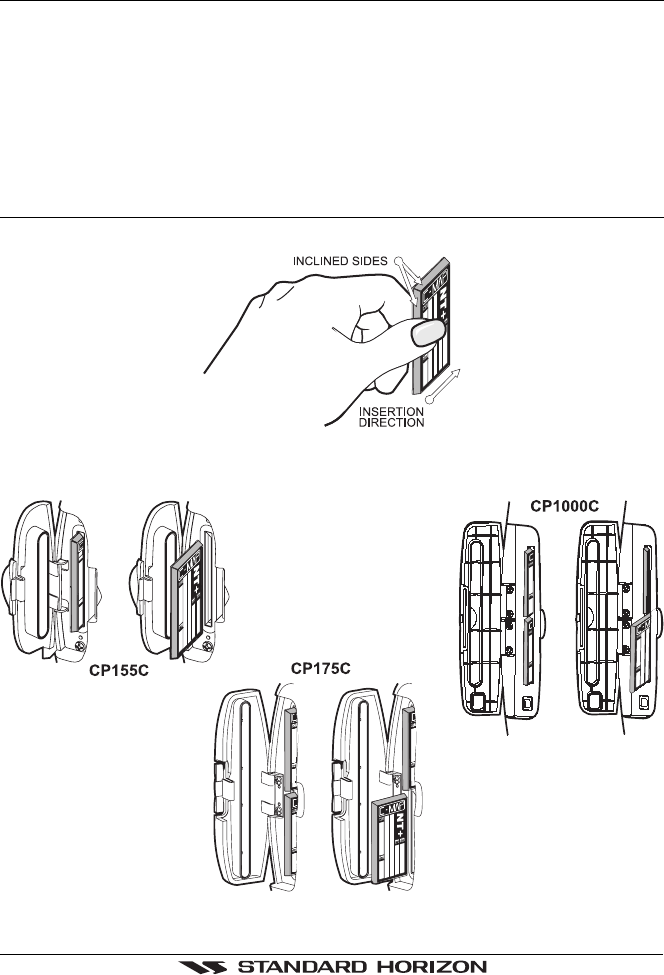

Figure 2.14 - Inserting C-CARD
Open the door, gently push the C-CARD into one of the two slots (one slot for CP155C): push
the C-CARD in as far as it will go, then close the door.
Figure 2.14a - Inserting C-CARD (Details)
