GPS chartplotters Page 67
11. ADVANCED SETTINGS
The Advanced Setup menu allows customization of many GPS functions, Alarms and
NMEA interfacing.
1. To access this menu press [MENU], move the ShuttlePoint knob to
SETTINGS and
press [ENTER].
2. Move the ShuttlePoint knob to
ADVANCED SETUP and press [ENTER].

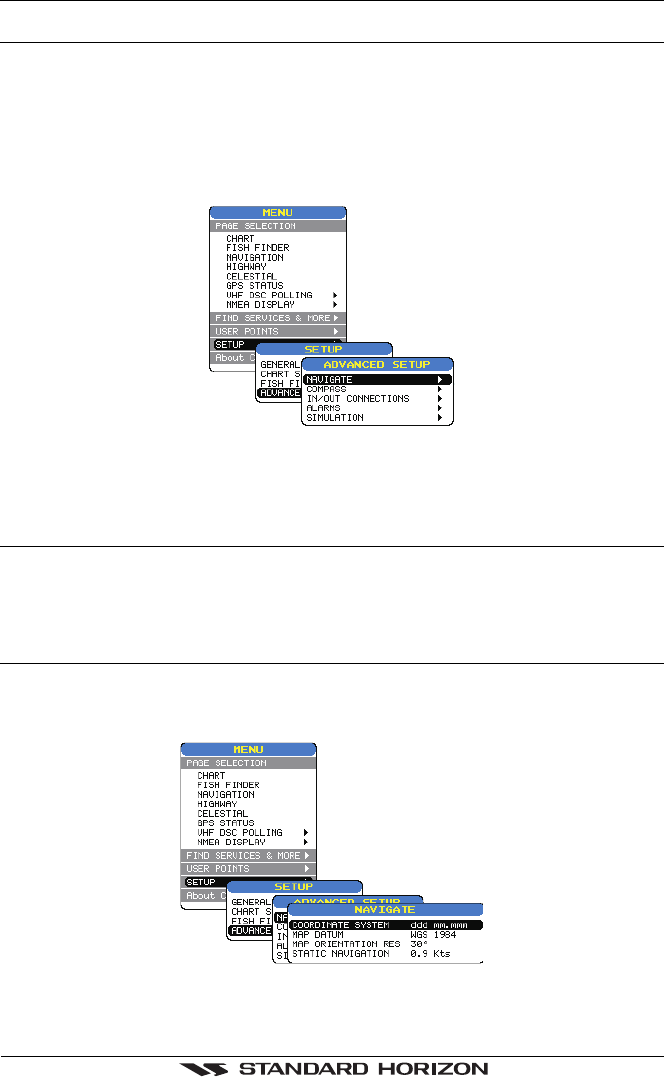

Figure 11 - Advanced Settings
While in this menu you will see many selections which are described in the next section.
11.0 INPUT/OUTPUT (NMEA)
The GPS chartplotter has 3 NMEA inputs and 3 NMEA outputs. The NMEA outputs can be
configured to send specific NMEA messages.
11.1 NAVIGATE
The Navigate Menu allows customization of the Coordinate System, (Loran TD's), Map
Datum, Map Orientation Resolution (angle the vessel has to change before the chart is
redrawn and Static Navigation.
Figure 11.1 - Navigate Menu
