Fig. 2-3
Transducer
Mounted on
Transom
Installation
Positioning the Transom-Mount Transducer
Begin by finding the best location for the mounting bracket. Here are the
rules:

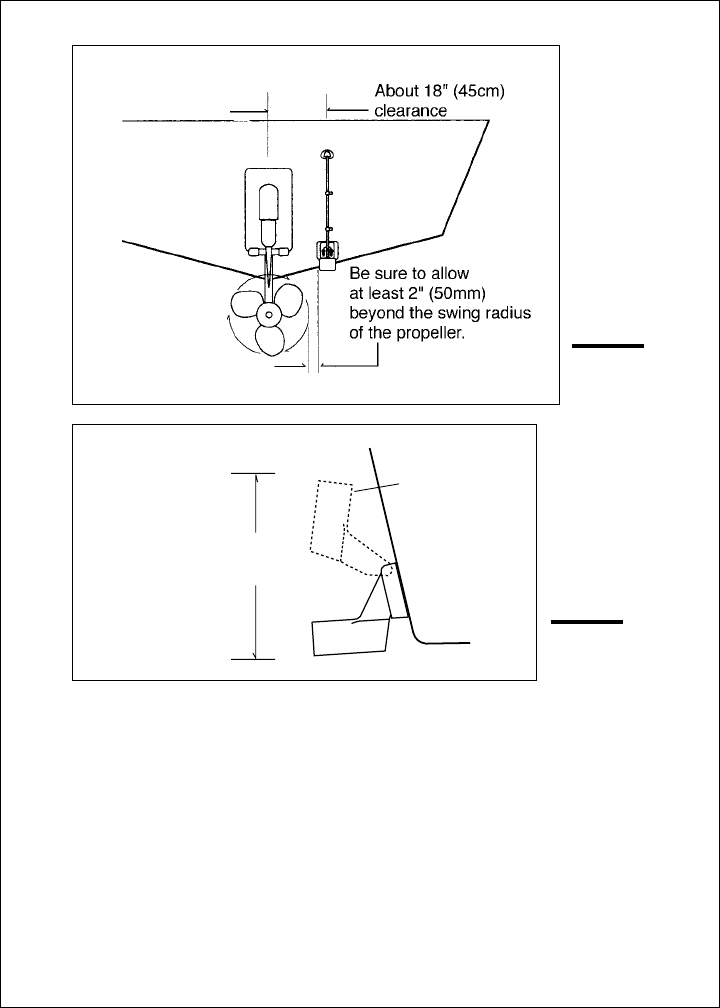

• If your boat has one propeller (outboard or inboard-outboard), mount
the transducer about 18” (455 mm) to the side of the centerline of the
boat. See Fig. 2-3. Choose the side that is on the downstroke of the
propeller. (This is usually the starboard side of the boat.) This will
reduce any interference caused by air bubbles.
Transducer in
released position
10"
(254 mm)
Allow a clearance
of at least 10
inches (254 mm)
Fig. 2-4
Transducer
Bracket,
Side View
