Phantom PS1000Page 12

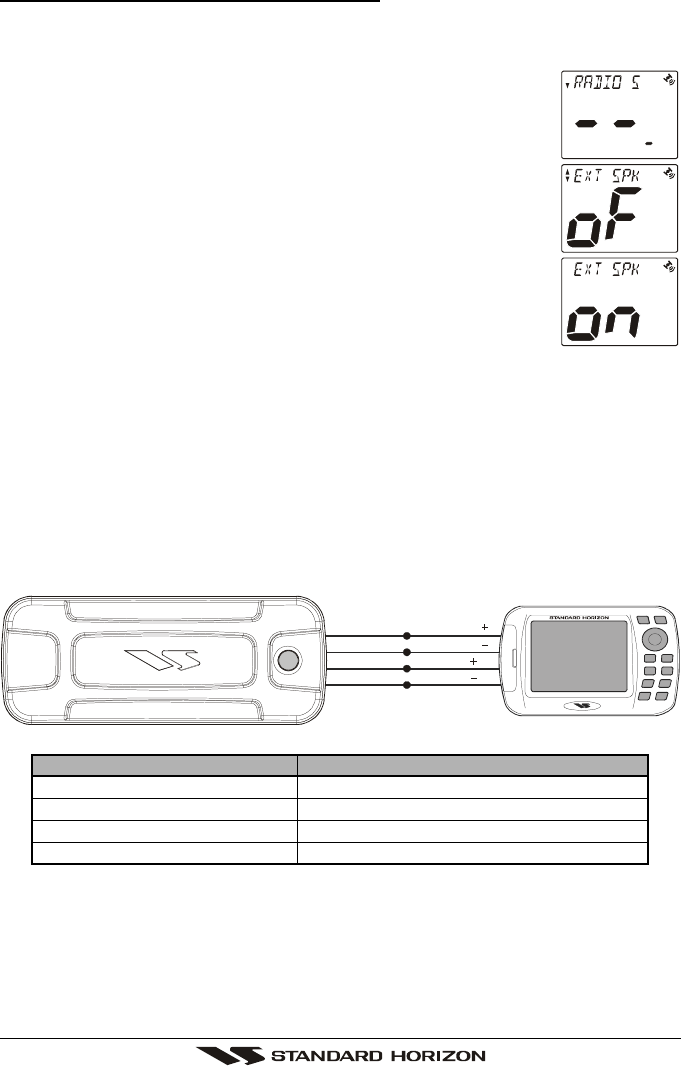

RAM+ or External Speaker Selection
By default the CMP25 RAM+ internal speaker is turned on, however using the
RAM+ mic this speaker can be turned off so the external speaker can be used.
1. Press and hold down the
[
CALL
(
SET
)
MENU
]
key until
“RADIO SETUP” menu appears.
2. Press the
[
CALL
(
SET
)
MENU
]
key, then press the
[
]
or
[
]
key to select “EXT SPK” menu.
3. Press the
[
CALL
(
SET
)
MENU
]
key.
4. Press the
[
]
or
[
]
key to turn the External Speaker “on.”
5. Press the
[
CALL
(
SET
)
MENU
]
key to store the selected set-
ting.
6. Press the
[
16/9
]
key to return to radio operation.
8.4 ACCESSORY CABLE
Blue: NMEA IN (+) from GPS navigation receiver
Green: NMEA IN (–) from GPS navigation receiver
Gray: NMEA OUT (+) to GPS navigation receiver
Brown: NMEA OUT (–) to GPS navigation receiver
When connecting the GPS navigation receiver, strip off about 1 inch (2.5 cm) of
the specified wire’s insulation, then splice the ends together using proper wa-
terproofing techniques.
Wire Color/Description
BLUE- NMEA Input (+)
GREEN - NMEA Input
(–)
GRAY- NMEA Output (+)
BROWN-NMEA Output
(–)
Connection Examples
Connect to NMEA
(+)
output of GPS
Connect to NMEA
(–)
output of GPS
Connect to NMEA
(
+
)
input of GPS
Connect to NMEA
(–)
input of GPS
GPS Receiver
Green
Blue NMEA OUT
NMEA OUT
NMEA IN
NMEA IN
( )
( )
( )
( )
Gray
Brown
