8.10 OPTIONAL MMB-84 FLUSH MOUNT INSTALLATION
1. To assist in flush mounting, a template has been included. Use this tem-
plate to find the mounting location.
2. Use the template to mark the location where the rectangular hole is to be
cut. Confirm the space behind the dash or panel is deep enough to accom-
modate the transceiver (at least 15 cm deep).
There should be at least 1 cm between the transceiver’s heatsink and any
wiring, cables or structures.
3. Cut out the rectangular hole and insert the transceiver.
4. Fasten the brackets to the sides of the transceiver with the lock washer nut
combination; so that the mounting screw base faces the mounting surface
(see Figure 4).
5. Turn the adjusting screw to adjust the tension so that the transceiver is tight
against the mounting surface.

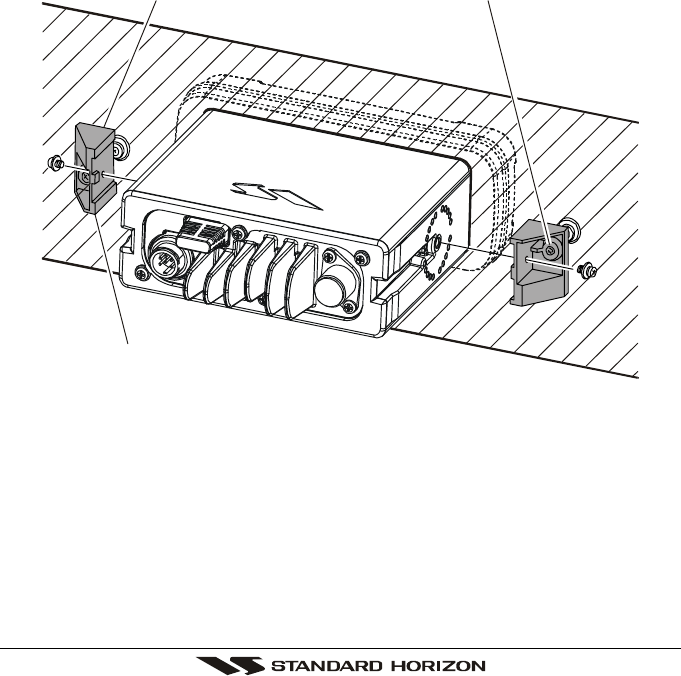

Figure 4. MMB-84 Flush Mount Installation
Bracket
A
djusting Screw
Lock-washer nut combination
