If the batteries do lose a charge, you can sometimes restore them by
placing them in a warm room or car interior. A better way is to replace
them with batteries that have been kept warm.
WARNING:
Never heat the batteries over an open flame or direct hot
air onto them. A fire or explosion could result.
Portable Transducer Assembly
Recommended tools for installation include a slotted screw driver and
two adjustable wrenches.
Assemble the transducer and bracket as shown in the following figure.
Attach the transducer to the bracket with the supplied hardware.
Make sure there is one washer on each side of the transducer, inside
the bracket. Slide the other washer over the end of the bolt and thread
the nut onto it.
Screw the suction cup onto the bracket using the supplied screw and flat
washer. Tie the nylon cord through the hole in the top of the bracket.
When using this transducer, tie the other end of the nylon cord to the boat.
This will help prevent the loss of the transducer if it comes off the boat.

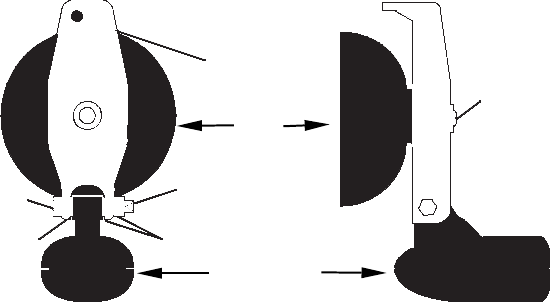

Portable transducer assembly: rear view (left) and side view (right.)
Clean the chosen area of the hull before attaching the suction cup. Lo-
cate the transducer on the hull as shown in the following figure. Don't
allow the bracket to extend below the hull, because water pressure
against it can cause the suction cup to come off at speed.
Moisten the cup, then press it onto the hull as firmly as possible. Tie
the nylon cord to the boat and route the transducer cable to the sonar
unit. Your portable sonar is now ready for use.
Washer
Washer
Nut
Bolt
Screw
Suction
cup
Transducer
Tie nylon
cord here
