Down/Side Combo View
Down/Side Combo View shows Down Imaging® and Side Imaging® sonar
information in a combination split screen. The Down Imaging® information is
displayed in the top window, and the Side Imaging® information is displayed in
the bottom window.
• X-Press™ Menu: Press the MENU key once to access the X-Press™
Menu for this combo view. You can set the sensitivity of the sonar, the
chart scrolling speed, and the display color palette (see Down Imaging®
X-Press™ Menu and Side Imaging® X-Press™ Menu).
• Freeze Frame: Use the 4-WAY Cursor Control key to move the cursor
over a sonar return in the Down Imaging® View, and the depth of the
sonar return will be displayed in the cursor dialog box.

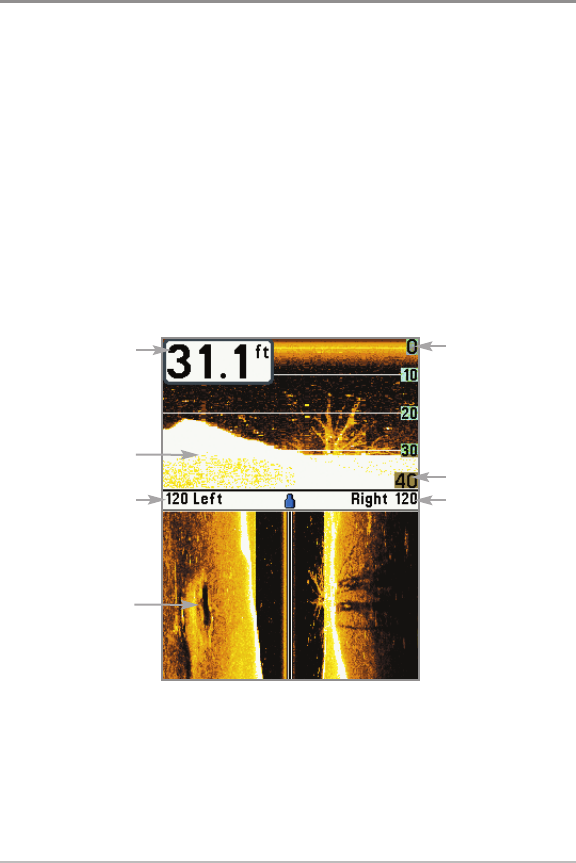

Down/Side Combo View
Side View
Range
Upper Range
Lower Range
Down Imaging®
Window
Depth
Side Imaging®
Window
Side View
Range
Views
