Chart/Side Combo View
Chart/Side Combo View shows regular chart information and side imaging
sonar information in a combination split screen. You can perform any of the
functions for either of these views, but only when the view you want to
control is selected as the active side (see Navigation X-Press™ Menu:
Active Side or Side Imaging X-Press™ Menu: Active Side for more
information). A green arrow points to the side that is active. You can also
adjust the size of the left side of a split screen (see Navigation X-Press™
Menu: Split Position or Side Imaging X-Press™ Menu: Split Position for
more information).
NOTE: See Side Imaging View and Chart View for more information about each side
of this view.

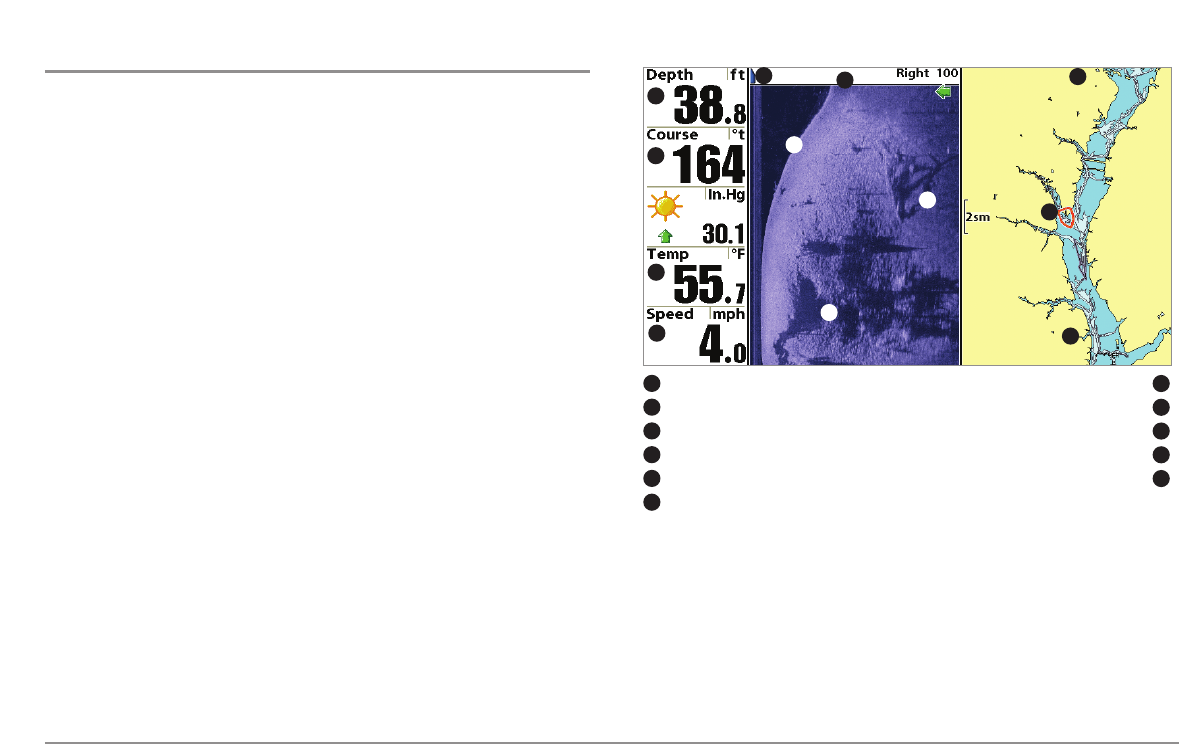

Chart/Side Combo View
Depth Topography Changes
1
7
Bottom Return
8
Water Surface Temperature Chart View Window
3
9
Speed of Boat Boat Icon
4
10
Side View Window Cartography
5
11
Shadows
6
12
1
2
3
4
5
6
7
8
9
10
10
11
Course: Bearing of Boat with Respect to North Reference
