CONTROLS/INSTRUMENTS/EQUIPMENTS
smo2008-001-021_a

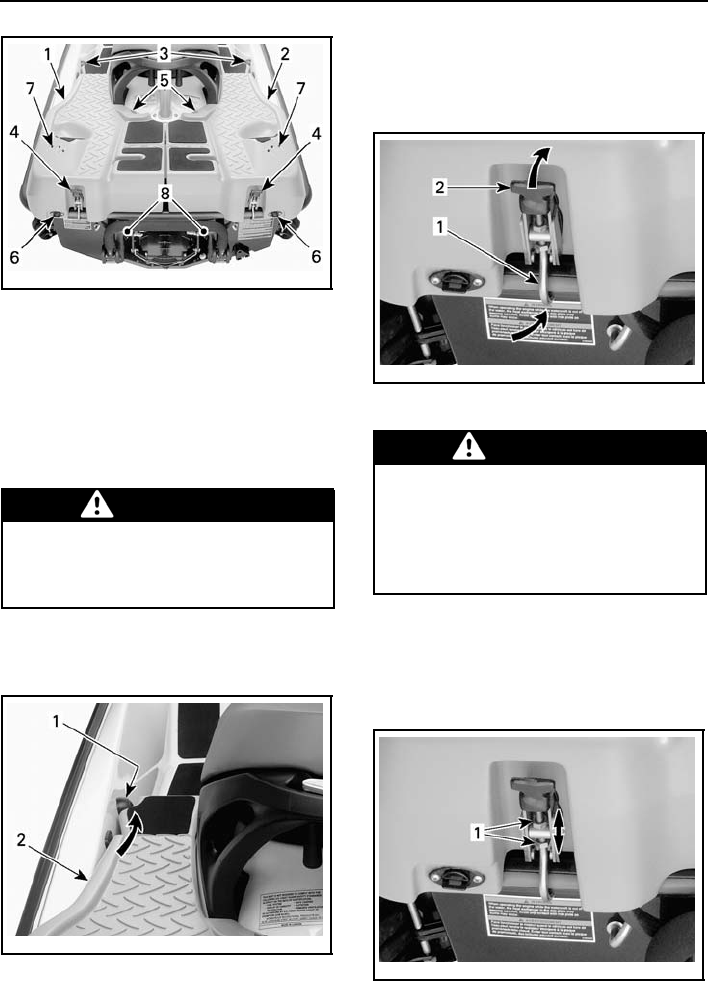

TYPICAL — BALLAST SYSTE M
1. Port side tank
2. Starboard side tank
3. Front supports
4. Rear clamps
5. Valves
6. D rain plug s
7. Overflow holes
8. Propulsion system connections
Installation
WARNING
NEVER install only one ballast
tank, uneven added weight of the
ballast could affect the handling
characteristics of the watercraft.
Slide front portio n of ballast tank under-
neath front suppo rt (half sphere).
smo2008-001-044_a
1. Front support (half sphere)
2. Ballast tank
Properly position ballast tank onto rear
boarding platform.
Secure ballast tank at th e rear using
ballast tank clamp.
Position clam p hook und ernea th
bumper ra il then push handle upward
to lock in place.
smo2008-001-046_a
1. Clamp hook
2. H and le
WARNING
If ballast tank are not properly se-
curedonboardingplatform,they
could detac h unexpectedly, cre-
ating a risk of injury to people
nearby. Periodically check that
ballast tank are properly attached.
If necessary, clamp tension is ad-
justable, loosen clamp tension then
lock nuts. Adjust accordingly.
Retighten nuts then verify adjustm ent.
smo2008-001-046_b
1. Lock nuts
Connect ba llast tank filling hoses to
watercraft propulsion system using
quick fittings.
62
