2. WIRING
2-8

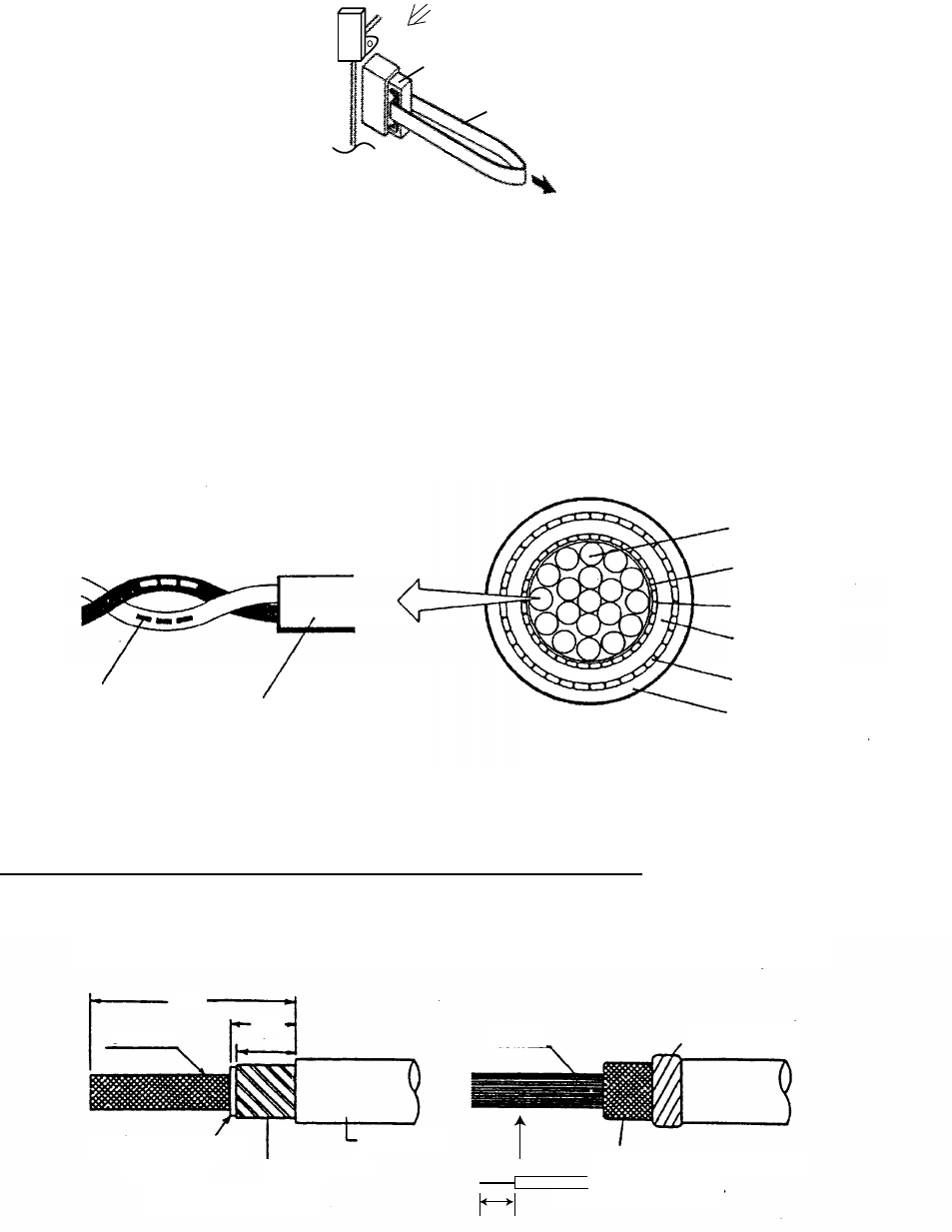

2.3.4 How to unplug the XH connector
If making a wrong connection of XH connector, use XH connector remover to unplug the XH
connector.
Connector remover
XH connector
Pull board slightly.
XH connector remover
2.4 Processor Unit
2.4.1 Wiring with transceiver unit
Attach a 38P connector to the end of the cable connected to the processor unit. Plug in this
connector to CN-A1 on the MAIN Board.
Marking
Qty: 1 to 4
Color: Black or Red
Insulators
(5 colors)
Core
Tape
Braided shield
Sheath
Armor
Anti-corrosive
sheath
Construction of cable between processor and transceiver units
Fabricating cable between processor and transceiver units
Remove the anticorrosive sheath, armor and vinyl sheath as shown below.
Vinyl sheath
Armor
Shield
45
Core
Insulation tape
Fold back shield
onto armor.
40
200
Anti
corrosive
sheath
3.5
Fabrication of cable between processor and transceiver units
