2. WIRING
2-11

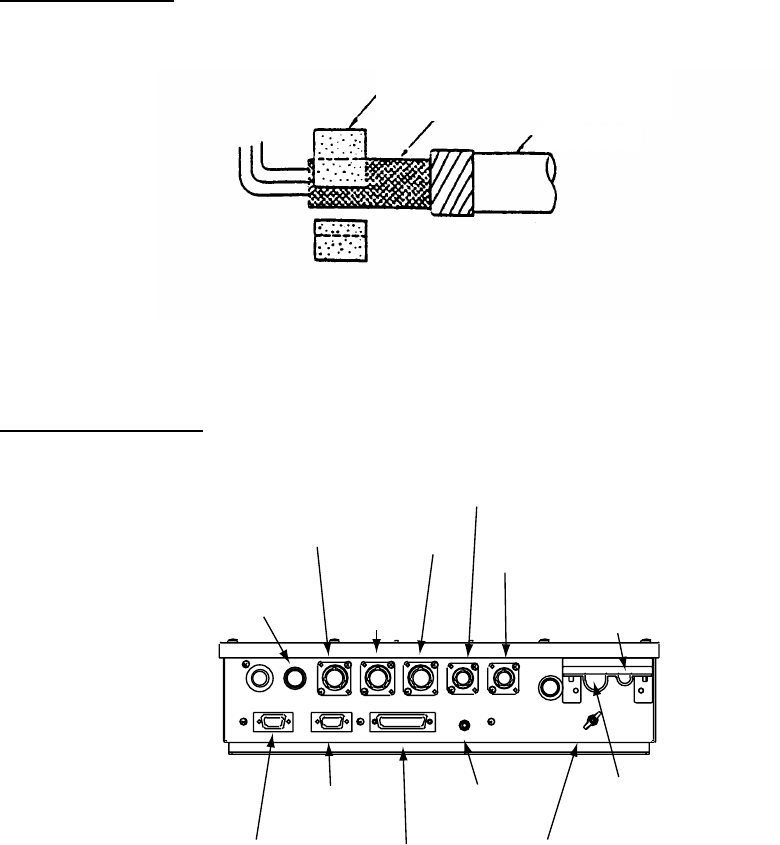

Fixing the cable
Set shield and armor section in cable clamp and tighten cable clamp.
Cable clamp
Bundled shield + armor
Anticorrosive sheath
How to set cable in cable clamp
Other connections
Remote
controller
NMEA1
CIF1
NMEA2
CIF2
Speed log/
current indicator
E/S
Gyro
(A/D converter)
Transceiver unit
External KP
(See page 2-14.)
Control unit
Monitor 2
Monitor 1
Speaker
Ground
Connection of processor unit
