CP500 Page 19

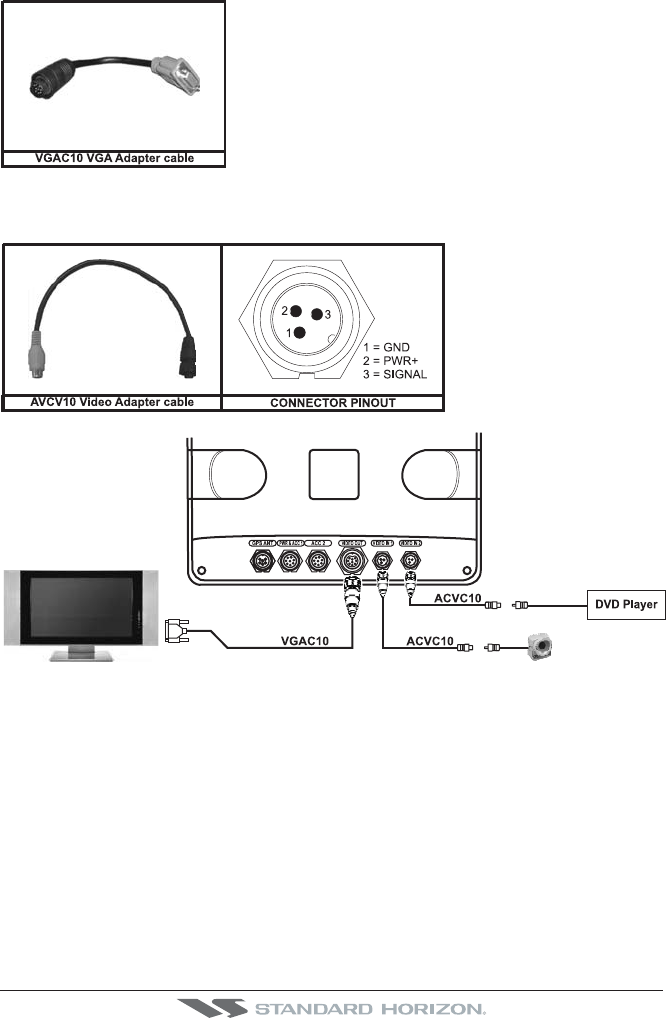

· One VGA output
Allows connection to a compatible TV or monitor using the optional VGAC10
adapter cable.
· Two NTSC or PAL Video Inputs
NTSC or PAL video inputs allowing a camera, DVD or VCR. To connect a video
source use the optional ACVC10 cable (3 pin to RCA phone adapter).
The CP500 has the capability to select the Video Input in three ways.
a) From the menu
1. Press [MENU] twice and move the ShuttlePoint knob to highlight VIDEO INPUT and
press [ENT].
2. A menu appears with the following options:
. ACTIVATE VIDEO, the possible choices are Full Screen View, PiP (Picture in
Picture) View and Auto Switch (*).
- If Full Screen View is chosen, the GPS Chart Plotter will show a warning message
with the instructions to adjust the image from the Video Input. If the user agrees
to proceed, the image from the video input will be shown.
- If Picture in Picture (PiP) View is chosen, a Video Input image can be shown on
a window and placed over the selected page at full screen. By moving the
ShuttlePoint knob, the PiP image is moved. When the focus is on the PiP image,
press [CLR] to close the PiP image.
