CP500 Page 61
12. PAGES
The GPS Chart Plotter has many pages that are designed to ease your navigation.
CHART
CELESTIAL
HIGHWAY
NAVIGATION
GPS STATUS NMEA DISPLAY
Display example with FF520 connected
Display example with RADAR connected
WAAS 3D
WAAS 3D
WAAS 3D

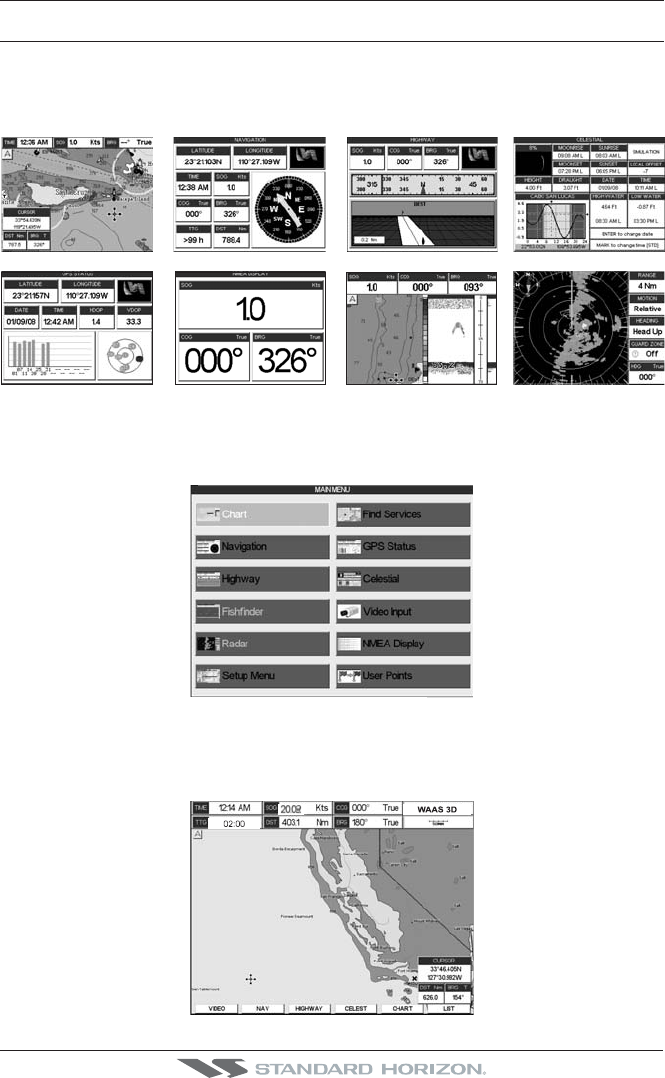

Figure 12 - Screen display pages
The pages can selected in the following ways:
· Selection by MENU
1. Press [MENU]. The following page is shown on the screen:
Figure 12a - Main Menu
2. Move the ShuttlePoint knob to highlight the desired page and press [ENT].
· Selection by SOFT KEY
Press one of the Soft Keys under the display, then press the relating Soft Key to show
the desired page.
Figure 12b - Screen display pages by Soft Keys
