CP500 Page 83
18. SPECIFICATIONS
Power Consumption : 1.5A max @12V WITH EXTERNAL GPS and TWO VIDEOCAM CONNECTED
Power supply : 10-35 Volt DC
Interface : Input/Output Interface NMEA-0183
Display : TFT Color LCD
(active area 12") sunviewable technology
Display Resolution : 800 x 600 pixels
Cartography : C-MAP NT
+
/MAX C-CARD
Operating temperature range : 32°F/+131°F (0°C/+55°C)
Storage temperature : -4°F/+158°F (-20°C/+70°C)
Keyboard : Silicon rubber, backlight
Weight (without bracket) : 6,6 lbs (3000 gr)
User Points (Marks/Waypoints): 3000
Routes : 50 (max 50 Waypoints each)
Track Points : 3000 (recordable in 5 Tracks)
NMEA Output sentences : GLL, VTG, BWC, WCV, APA, APB, HDG, BOD, XTE,
RMA, RMB, RMC, GGA, HSC, DBT, DPT, MTW, VHW.
NMEA Input sentences : BWC, DBT, DPT, DSC, DSE, GGA, GLL, GSA, GSV,
HDG, HDM, HDT, MTW, MWD, MWV, PCMPA,
PCMPD, PJRCD, PJRCF, PKODG, RMC, RTE, TLL,
VDM, VHW, VTG, VWR, VWT, WPL

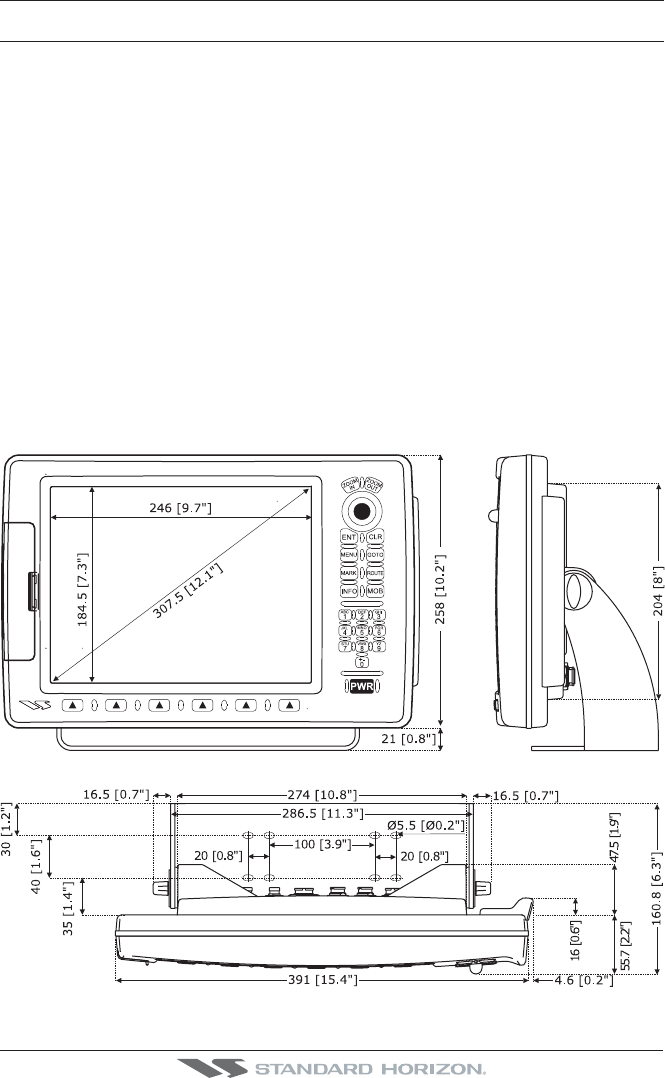

Figure 18 - CP500 Dimensions [mm/inch]
