12.1 NAVIGATION PAGE
This page is useful to show information when heading to a destination. The default page is
shown with a Compass Rose, however this can be customized to show a Compass Tape.
1. To change to show the COMPASS TAPE, select the Chart page, press [MENU]. Move
the ShuttlePoint knob to highlight
SETUP MENU and press [ENT].
2. Move the ShuttlePoint knob to highlight
GENERAL SETUP and press [ENT] or move
the ShuttlePoint knob to the right.
3. Move the ShuttlePoint knob to highlight
WINDOW SETUP and press [ENT] and press
[ENT] or move the ShuttlePoint knob to the right.
4. Move the ShuttlePoint knob to highlight
NAVIGATION PAGE and press [ENT] and
press [ENT] or move the ShuttlePoint knob to the right.
5. Move the ShuttlePoint up or down to select
COMPASS TAPE and press [ENT].
6. Press [CLR] or move the ShuttlePoint knob to the right until the Chart page is shown.

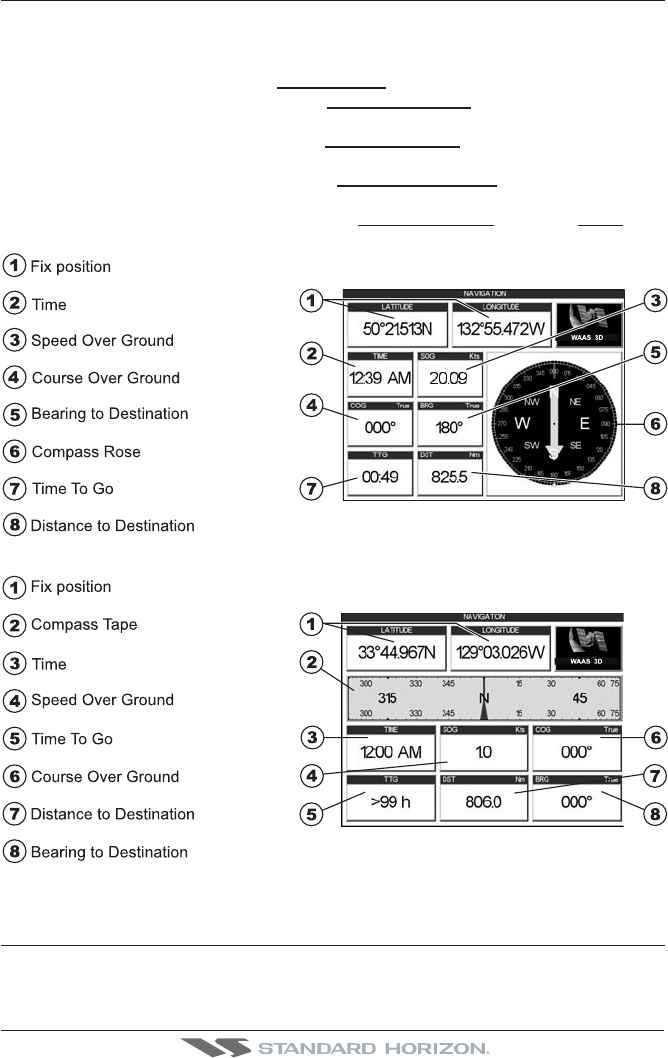

Figure 12.1 - Navigation Data page with Compass Rose
Figure 12.1a - Navigation Data page with Compass Tape
12.2 HIGHWAY PAGE
Shows a 3D view of the vessel travelling through the water when Navigating to a destination point,
Mark or following a Route. Press [ZOOM IN] or [ZOOM OUT] to change the highway scale.
