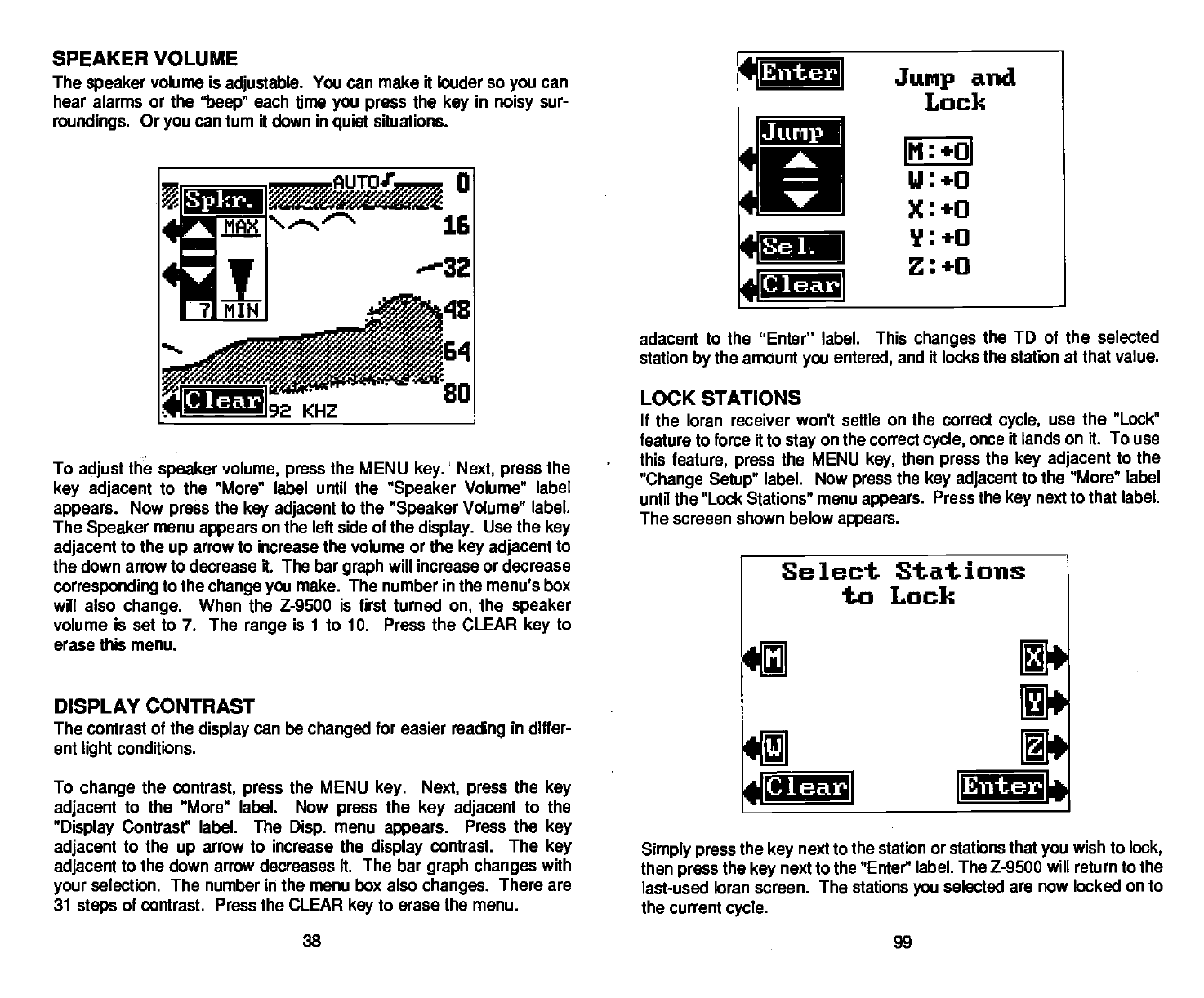

SPEAKER VOLUME
The
speaker
volume is
adjustable.
You can make it louder so
you
can
hear alarms or the
"beep"
each time
you press
the
key
in
noisy
sur-
roundings.
Or
you
can turn it down in
quiet
situations.
To
adjust
the
speaker
volume,
press
the MENU
key.'
Next,
press
the
key adjacent
to the More" label until the
"Speaker
Volume" label
appears.
Now
press
the
key adjacent
to the
"Speaker
Volume" label.
The
Speaker
menu
appears
on the left side of the
display.
Use the
key
adjacent
to the
up
arrow
to
increase the volume or the
key adjacent
to
the down arrow to decrease it. The bar
graph
will increase or decrease
corresponding
to the
change you
make. The number in the menu's box
will
also
change.
When the
Z-9500 is first turned
on,
the
speaker
volume is set to 7. The
range
is 1 to 10. Press the CLEAR
key
to
erase this menu.
DISPLAY CONTRAST
The contrast
of
the
display
can be
changed
for easier
reading
in differ-
ent
light
conditions.
To
change
the
contrast, press
the MENU
key. Next, press
the
key
adjacent
to the "More" label. Now
press
the
key
adjacent
to the
"Display
Contrast" label. The
Disp.
menu
appears.
Press the
key
adjacent
to the
up
arrow to increase the
display
contrast.
The
key
adjacent
to the down arrow decreases it. The bar
graph changes
with
your
selection. The
number
in
the
menu box also
changes.
There are
31
steps
of contrast. Press the CLEAR
key
to erase
the menu.
adacent to the "Enter" label. This
changes
the
TD of the selected
station
by
the amount
you
entered,
and It locks the station at that value.
LOCK STATIONS
If the loran receiver won't settle on the correct
cycle,
use the "Lock"
feature to force it to
stay
on the correct
cycle,
once it lands on it. To use
this
feature,
press
the MENU
key,
then
press
the
key adjacent
to the
"Change Setup"
label.
Now
press
the
key adjacent
to the "More" label
until the "Lock Stations" menu
appears.
Press the
key
next to that label.
The screeen shown below
appears.
Simply press
the
key
next to the station or stations
that
you
wish to
lock,
then
press
the
key
next to the "Enter" label.
The Z-9500 will return to the
last-used loran screen. The
stations
you
selected are now locked on to
the current
cycle.
38
99
Spltr.
jr.
.IEiterI
Junp
Jump
and
Lock
III: .1-01
x:+o
Z:÷0
8el
Clear
Clear
Select
to
C
C
Stat ions
Lock
Clear
IEnterI
