1.48 Own Ship Marker
Own ship marker ( ) may be inscribed on the screen as below. You may enter ten
such symbols. Each own ship symbols is shown with a number.
1. Use the trackball to select the MARK box at the left side of the screen. The
guidance box now reads "MARK SELECT / MARK MENU."
MARK
Mark type last
selected, mark
number
-> +
- - -m, - - -m
1
Dimensions of
own ship
Mark box
2. Push the right button to open the MARK menu.
[MARK MENU]
1 ORIGIN MARK STAB
GND/SEA
2 MARK KIND
ORIGIN MARK(No. )/
ORIGIN MARK(SYM)/
MAP MARK/
WP 1~50/
WP 51~ 100/
WP 101~150/
WP 151~198/
OWN SHIP SHAPE
8 MARK POSN
CURSOR/OS/L/L
00
°000.00 N
000
°000.00 E
9 MAP DISPLAY
OFF/ON
0 MAP MARK COLOR*
RED/GRN/BLU/YEL/
CYA/MAG/WHT
* Not available on IMO
or A type
MARK menu
3. Select "2".
4. Select OWN SHIP SHAPE. (On the W-type, the indication
"OS" appears to the right of the MARK box.)
5. Push the right button to close the menu.

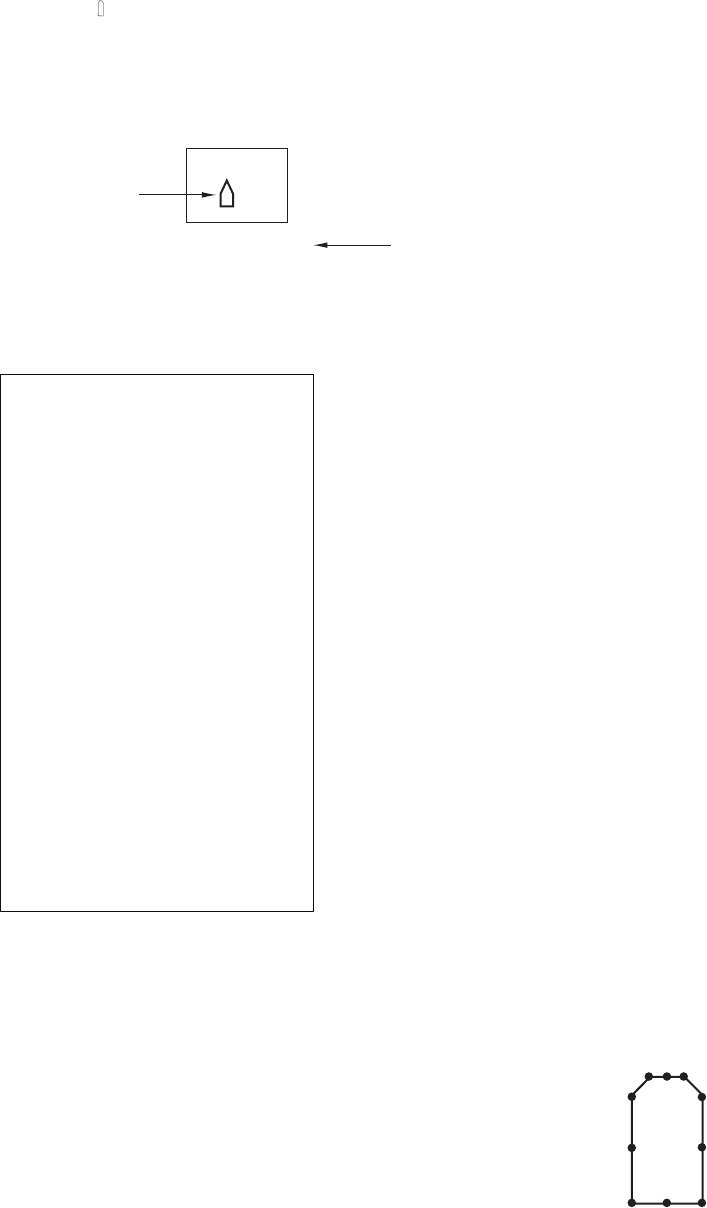

6. Use the trackball to select the own ship symbol at the bottom
left corner.
7. Roll the scrollwheel to select the point number for which you
want to change its position. See figure at right.
8. Push the left button. The cursor positions at the point number
selected.
9. Use the trackball to drag the point to location desired.
10. Push the left button to confirm selected location.
11. Repeat steps 6-10 continue changing symbol shape.
