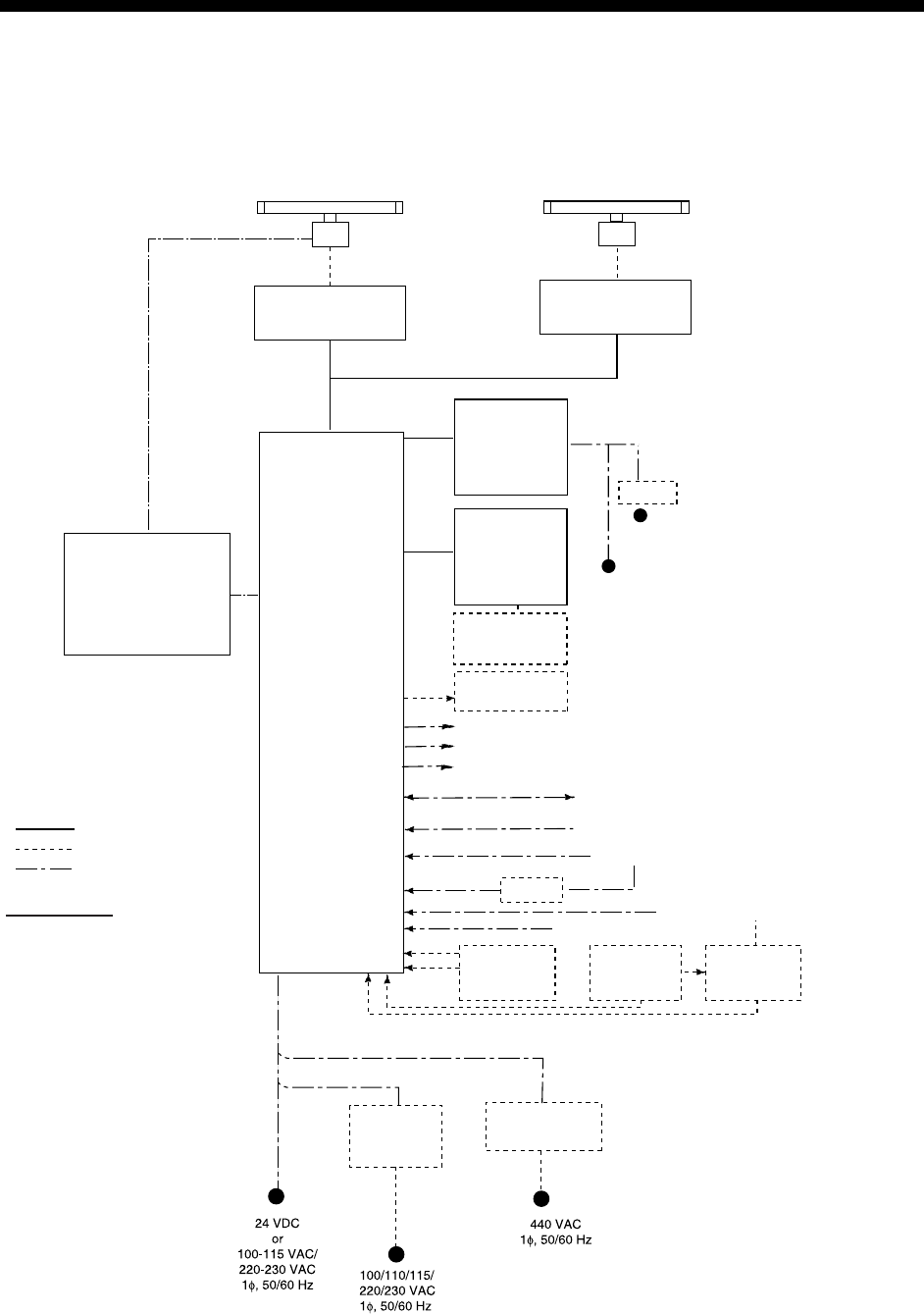

SYSTEM CONFIGURATION
See page xvii for detailed information about antenna units and radiators.
With FURUNO-supplied monitor
ANTENNA UNIT
(Performance Monitor PM-51* built in)
TRANSCEIVER UNIT
RTR-082
For FAR-2837SW
PROCESSOR UNIT
RPU-013
FAR-2117(-BB,/2127(-BB)/2817/2827/2827W
Waveguide or
Coax cable
(For FAR-2837SW)
VDR
External Monitor
Sub Display
Alarm
CONTROL UNIT
RCU-014
(Keyboard)
or
RCU-015
(Trackball)
Control Unit
RCU-016
(Remote)
24 VDC
or
115/230 VAC
115/230 VAC
RU-3423
24 VDC
Navigator (INS, GPS, etc.)
IEC-61162-1 Serial Data
(Input/Output)
IEC-61162-1 Serial Data
(Input)
Speed Log
Gyrocompass
AIS
AD-100
TRANSCEIVER UNIT
RTR-081A
For FAR-2827W
Waveguide
(For FAR-2827W)
: Option
: Dockyard supply
: Standard
Category of Units
Antenna unit: Exposed to weather
All other units: Protected from weather
ANTENNA UNIT
(Performance Monitor PM-31* built in)
Rectifier
RU-3424
RU-1746B-2
Transformer Unit
RU-1803
DC spec
AC spec
Track Control Unit
Memory Card
Interface Unit
CU-200
OR
Memory Card
Interface Unit
CU-200 x 2
Switching Hub
HUB-100
HUB has ports for connection of up to 7 processor units
100-230 VAC
POWER SUPPLY UNIT
PSU-007
(
For FAR-2137S(-BB)/2837S)
OR
POWER SUPPLY UNIT
PSU-011*
(For FAR-2827W/2837SW)
* Russian flag only
*
* These monitors have been approved by the IMO,
If a different monitor is to be used, its effective diameter
must meet the applicable Category requirements:
CAT 1: effective diameter 320 mm or higher
CAT 2: effective diameter 250 mm or higher
For installation and operation of other monitor,
see its manuals.
MU-190/201CR for CAT2, MU-231/231CR for CAT1.
MONITOR UNIT
MU-201CR*
1
MU-190*
1
MU-231CR*
2
MU-231*
2
*
1
FAR-2107
*
2
FAR-2807
FAR-2137S(-BB)/2837S/2837SW
