4. AIS OPERATION
The FURUNO AIS (Automatic Identification System) model FA-100 or FA-150
exchanges with other AIS-fitted ships all data and information required by the
SOLAS 1994 as amended. However, they are displayed in text form. By
interfacing the FA-100 or FA-150 with this radar, the AIS information is
graphically indicated together with the radar and TT information.
For the IMO specification, position data must be fixed by WGS-84 geodetic
datum and speed input must be ground tracking. If other type of datum is input,
the error message "DATUM" appears and the AIS feature is inoperative. This
restriction does not apply to other types.
When AIS is active, MANUAL and REF in the speed source selection window
are shown in gray to indicate they are not available for selection.
You may disable or enable the AIS display from the AIS DISP box.
4.1 Controls for AIS
Keyboard

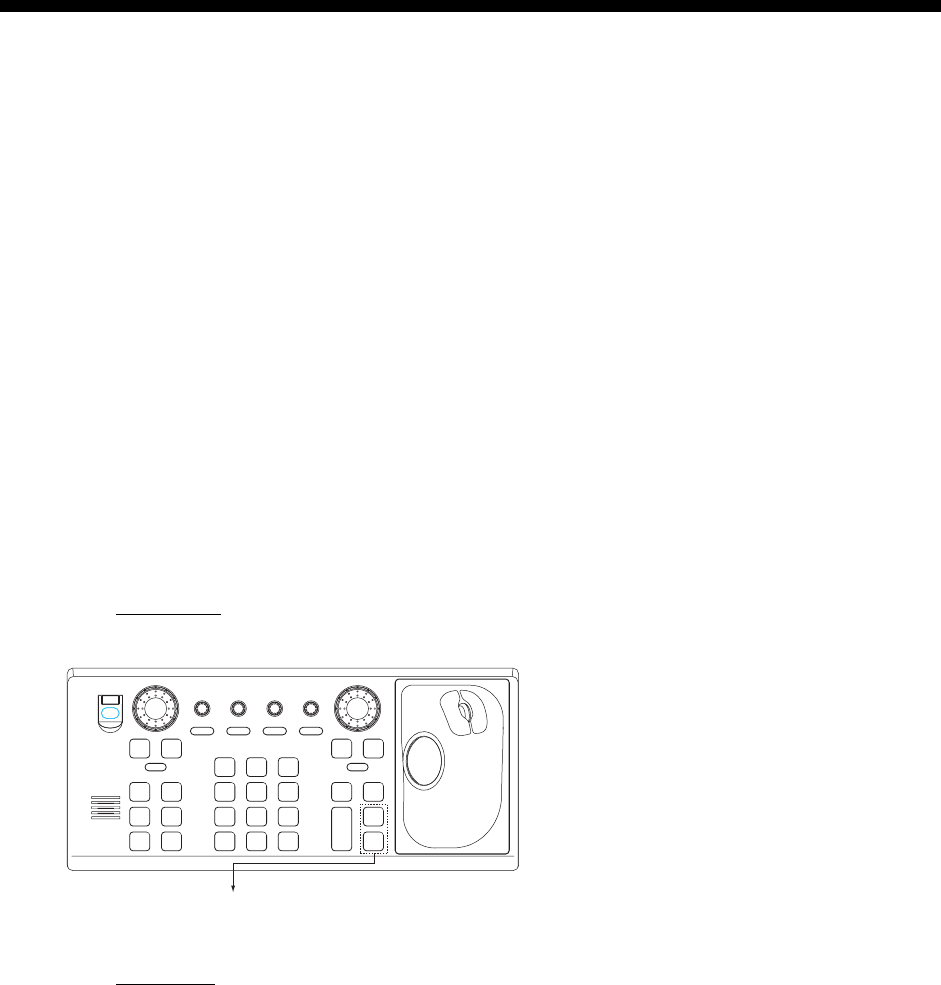

The AIS uses the keys shown below.
ACQ
ON
MENU
OFF
VRM
A/C SEAA/C RAIN
MODE
3
LINE
INDEX
6
OFF
21
HL
CENTER
OFF
45
RESET
CU/TM
OFFSET
EBL
GAIN
TARGET
CANCEL
TARGET
DATA
RANGE
-
+
LIST
TARGET
9
MARK
ENTER
TIME
VECTOR
78
CANCEL
TRAILS
0
MODE
VECTOR
BRILL
BRILL
EBL
F1
OFF
F2
ON
POWER
ACK
ALARM
F3 F4
STBY
TX
TARGET DATA: Displays data on AIS target
selected by the trackball.
TARGET CANCEL: Sleeps chosen AIS target.
Control unit RCU-014
Trackball
With the cursor inside the effective display area, you can access AIS functions
by rolling the scrollwheel or choosing appropriate AIS function from the
CURSOR menu.
Roll the scrollwheel to show the following indications in the guidance box to
access respective AIS function:
TARGET DATA & ACQ: Displays target data for AIS target selected with the
trackball; activates chosen AIS target.
TARGET CANCEL: Sleeps selected AIS activated target.
