A–16 LM10 MOTOR PROTECTION SYSTEM – INSTRUCTION MANUAL
LM10 AND GE FANUC 90-30 WITH DEVICENET™ CHAPTER A:
To view the slave number of slaves connected to master card, add address %I00001 to the
new reference table. Now, address %I000010 will read “1”, since the LM10 is connected to
the master as slave 1 (MAC ID 1).

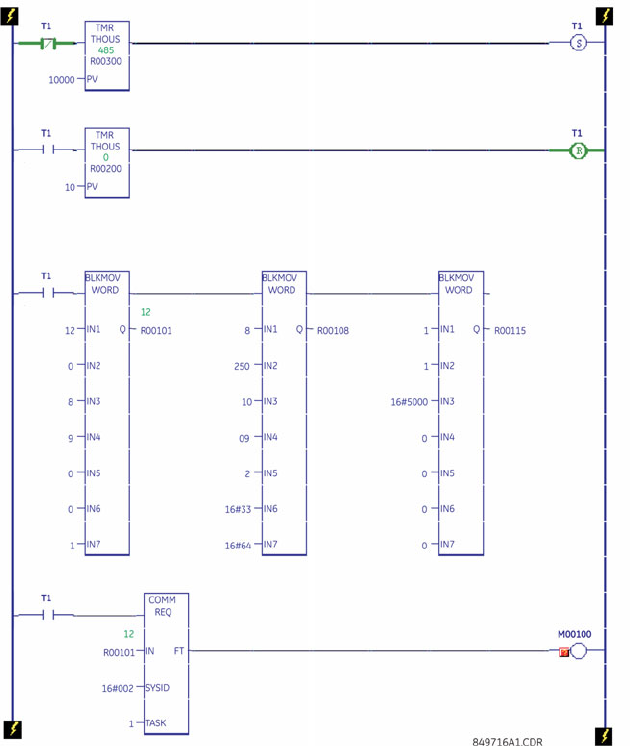

FIGURE A–4: Ladder Logic for Login (User)
