2 FUNCTIONS
2.1 Monitoring Function
2.1.1 Display overview

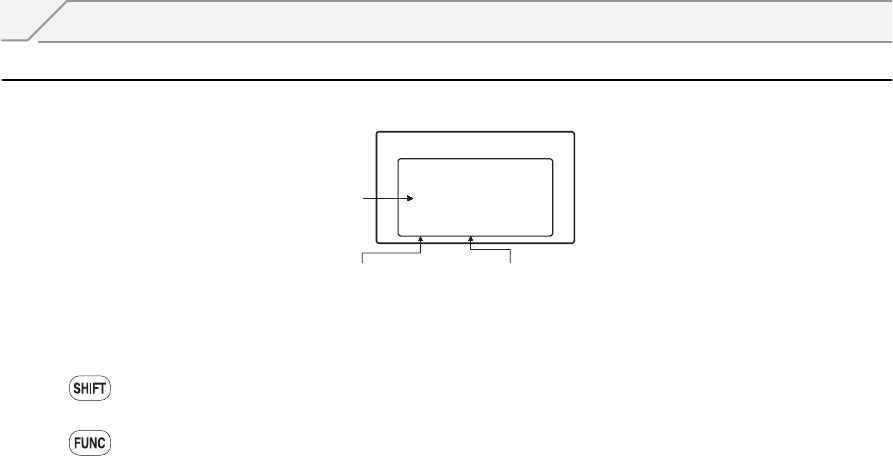

(1) Main monitor
Shows the output frequency, output current, output
voltage, alarm history and other monitor data.
· Using to change to the next screen (Refer to
page 25)
· Using to change to the next screen (Refer to
page 59 )
· Using the parameter "PU main display data
selection" (Refer to page 28 )
(2) Rotation direction indication
Display the direction (forward rotation/reverse
rotation) of the start command.
STF : Forward rotation
STR : Reverse rotation
--- : No command or both STF and STR ON
(3) Operating status indication
Display the running status of the inverter.
STOP : During stop
FWD : During forward rotation
REV : During reverse rotation
JOGf : During Jog forward rotation
JOGr : During Jog reverse rotation
ARAR : At fault occurrence
120.00
OL
Hz
STF FWD PU
(1) Main monitor
(2) Rotation direction indication
(3) Operating status indication
READ
:List
