BBV28581 05/2010 115
Applicative notes

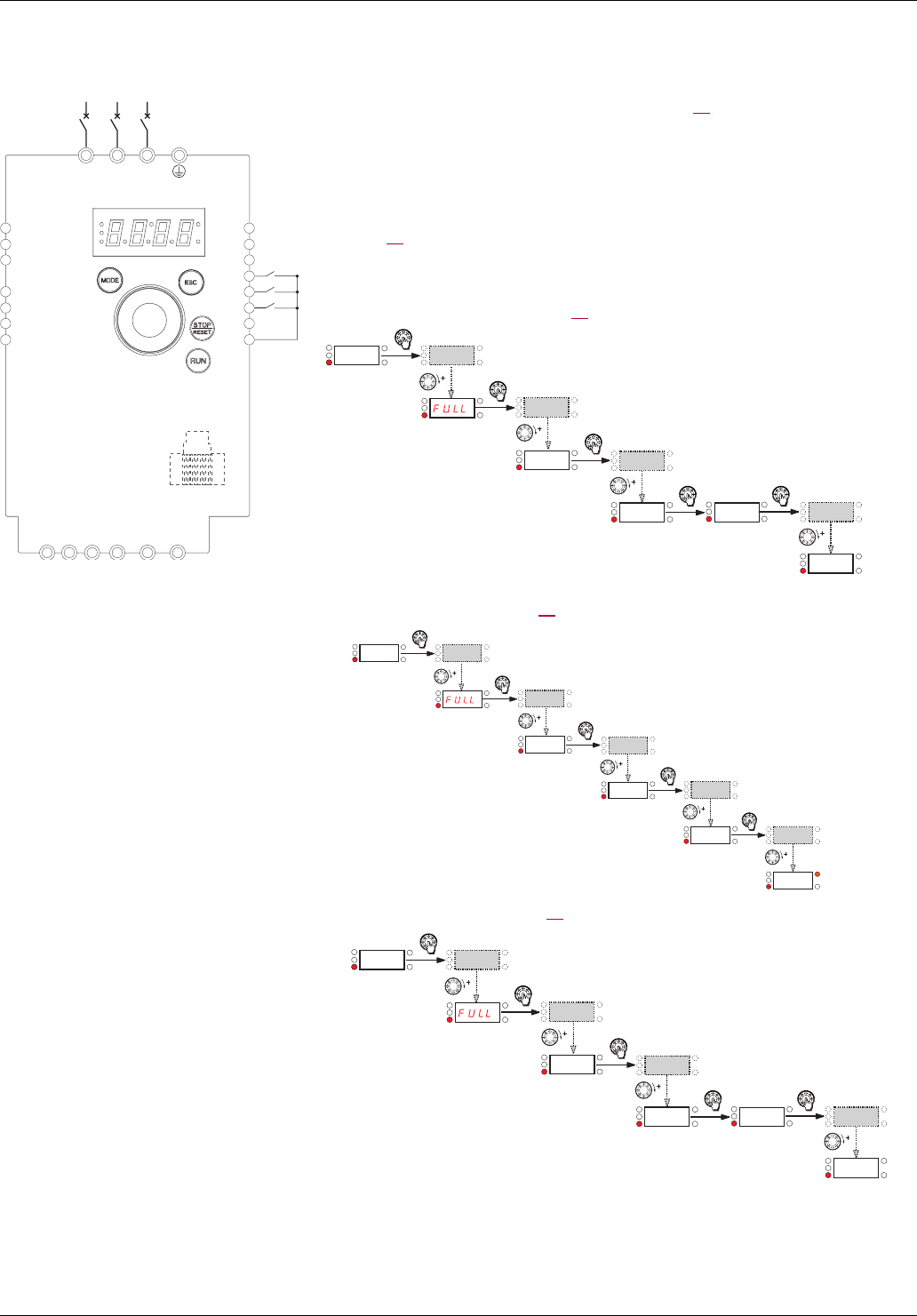

4 Preset speeds (source)
Note: Please refer to Function compatibility table page 36.
1. Connect the ground terminal to the grounding screws located below the output
terminals.
2. Connect the power terminals.
3. Connect the logic inputs.
4. Turn on the drive without giving a run command.
5. Assign factory settings to the drive, Factory / recall customer parameter set FCS
page 46
set to InI.
6. Set the motor parameters (in COnF mode) only if the factory configuration of the drive
is not suitable.
7. Perform an auto-tuning.
8. Set 2 Preset speeds PS2 page 70
to L2H.
(a): Run Forward
(b): 2 preset speeds (c): 4 preset speeds
Set Preset speed 2 SP2 page 70
to 20 Hz.
Set 4 Preset speeds PS4 page 70
to L3H.
LO+
LO-
COM
LI1
LI2
LI3
LI4
+24V
COM
AI1
5V
AO1
R1A
R1B
R1C
RST
UPA+ PC-PO V W
MODBUS
(b)
(c)
(a)
ConF
PS2
PSS-
L2H
FUn
ConF
PSS-
20
SP2
FUn
ConF
PS4
PSS-
L3H
FUn
