34 BBV28581 05/2010
Programming
First power-up
At first power-up you are prompted to set Standard motor frequency bFr page 45. Next time power is applied rdY appears. Operating
mode selection is then possible using the MODE key as detailed below.

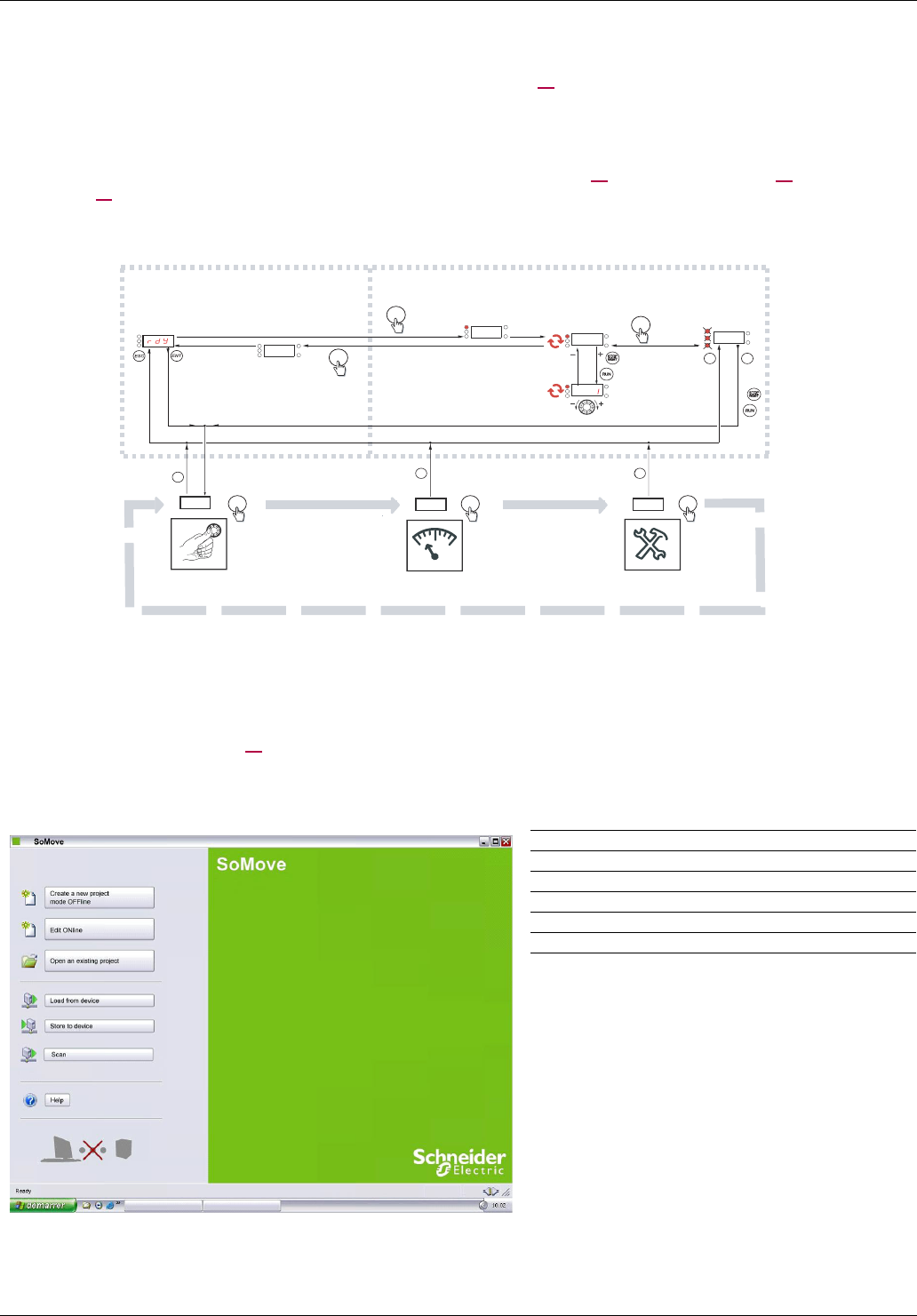

Menus structure
Access to menus and parameters is possible through 3 modes: Reference rEF page 37, Monitoring MOn page 38 and Configuration
COnF page 44
. Switching between these modes is possible at any time using the MODE key or Jog Dial on keyboard. The first press on
the MODE key moves from the current position to the top of the branch. A second press switches to the next mode.
Menu customization using SoMove
ATV12 factory settings enable drive operation with most applications. You can use SoMove software to customize the "MyMenu" and FULL
menus of COnF mode (see page 44
), by selecting which menus and parameters will be hidden or accessible for the user. Once the
configuration has been adjusted, it can be downloaded to the ATV12 by connecting the drive to the computer or by downloading the
configuration through the multiloader or simpleloader.
SoMove can be used to operate the drive for testing and commissioning.
For further information, please consult the SoMove help.
Description References
SoMove -
USB/RJ45 cable TCSMCNAM3M002P
Simple-loader tool VW3A8120
Multi-loader tool VW3A8121
Bluetooth adapter VW3A8114
COnFMOn
rEF
LOC
35.
rdY
rEN
3s
MODE
3s
MODE
2s
ESC
rdY
ESC ENT
ESCESC
ESC
[SPEED REFERENCE] [MONITORING] [CONFIGURATION]
MODE MODE MODE
[REMOTE configuration]
[LOCAL configuration]
[Analog input virtual
(Hz)]
