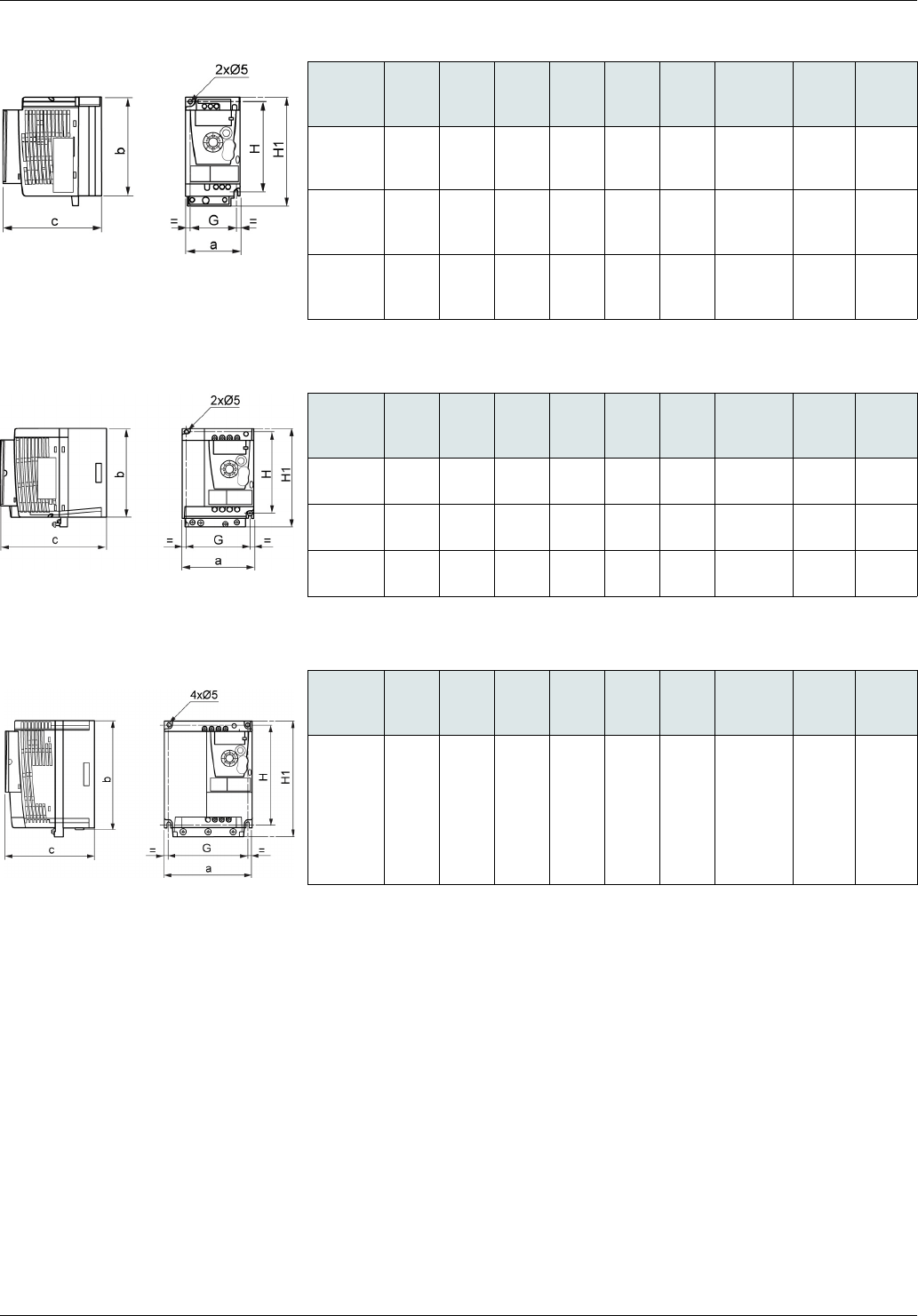

Dimensions and weights
ATV12H018F1, 018M2, 037F1, 037M2, 037M3, 018M2, 018M3, 055M2, 075M2
ATV12H075F1, U15M2, U22M2, U15M3, U22M3
ATV12HU30M3, U40M3
ATV12H
a
mm
(in.)
b
mm
(in.)
c
mm
(in.)
G
mm
(in.)
H
mm
(in.)
H1
mm
(in.)
Ø
mm
(in.)
For
screws
Weight
kg
(lb)
018F1
018M2
018M3
72
(2.83)
142
(5.59)
102.2
(4.02)
60
(2.36)
131
(5.16)
143
(5.63)
2 x 5
(2 x 0.20)
M4
0.7
(1.5)
037F1
037M2
037M3
72
(2.83)
130
(5.12)
121.2
(4.77)
60
(2.36)
120
(4.72)
143
(5.63)
2 x 5
(2 x 0.20)
M4
0.8
(1.8)
055M2
075M2
075M3
72
(2.83)
130
(5.12)
131.2
(5.17)
60
(2.36)
120
(4.72)
143
(5.63)
2 x 5
(2 x 0.20)
M4
0.8
(1.8)
ATV12H
a
mm
(in.)
b
mm
(in.)
c
mm
(in.)
G
mm
(in.)
H
mm
(in.)
H1
mm
(in.)
Ø
mm
(in.)
For
screws
Weight
kg
(lb)
075F1
105
(4.13)
130
(5.12)
156.2
(6.15)
93
(3.66)
120
(4.72)
142
(5.59)
2 x 5
(2 x 0.20)
M4
1.3
(2.9)
U15M2
U22M2
105
(4.13)
130
(5.12)
156.2
(6.15)
93
(3.66)
120
(4.72)
142
(5.59)
2 x 5
(2 x 0.20)
M4
1.4
(3.1)
U15M3
U22M3
105
(4.13)
130
(5.12)
131.2
(5.17)
93
(3.66)
120
(4.72)
143
(5.63)
2 x 5
(2 x 0.20)
M4
1.2
(2.6)
ATV12H
a
mm
(in.)
b
mm
(in.)
c
mm
(in.)
G
mm
(in.)
H
mm
(in.)
H1
mm
(in.)
Ø
mm
(in.)
For
screws
Weight
kg
(lb)
U30M3
U40M3
140
(5.51)
170
(6.69)
141.2
(5.56)
126
(4.96)
159
(6.26)
184
(7.24)
4 x 5
(2 x 0.20)
M4
2.0
(4.4)
