HULL/ENGINE H OOD 13-11
Fittings

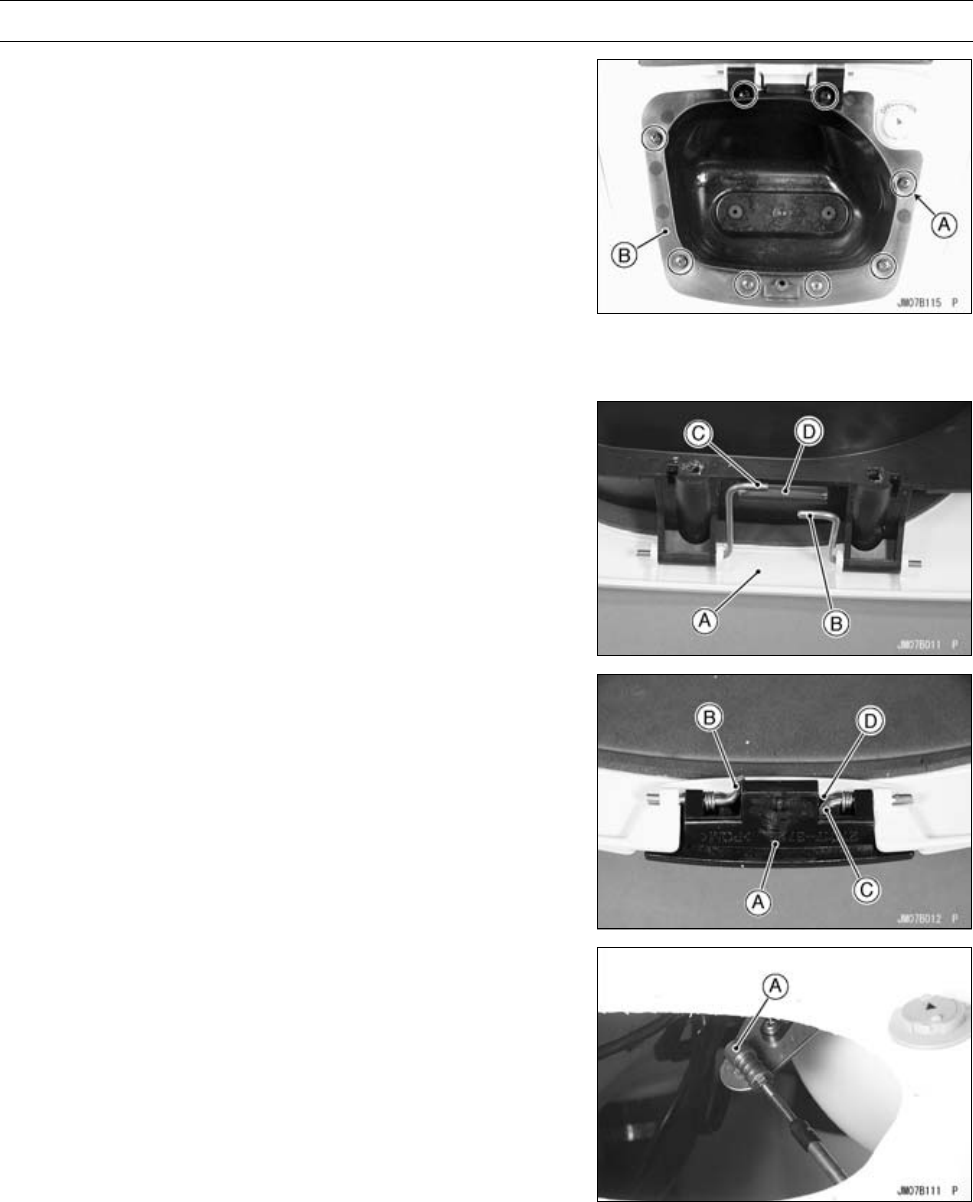

Front Storage Pocket Removal
Remove the front storage pocket mounting screws [A].
Remove the front storage pocket [B].
Front Storage Pocket Installation
Installation is the reverse of removal.
Storage Pocket Disassembly/Assembly
To remove the storage pocket cover [A], turn and pull out
the shaft [B] (both side).
When installing the shafts, put the shaft end [C] (both
side) into the hollow [D] on the storage pocket.
To remove the rock [A], turn and pull out the shaft [B] (both
side).
When installing the shafts, push the shaft end [C] (both
side) into the hollow [D] on the rock.
Crossmember Removal
Remove the front storage pocket (see Front Storage
Pocket Removal).
Disconnect the steering cable upper end [A].
