Embraer Prodigy
®
Flight Deck 100 Pilot’s Guide
451
AUTOMATIC FLIGHT CONTROL SYSTEM
AFCS STATUS BOX
Flight director mode annunciations are displayed onthe PFDs when theight director isactive.  Flight
director selection, autopilot, yaw damper, and Current Speed Control (if available) statuses are shown in the
centeroftheAFCSStatusBox.Lateralightdirectormodesaredisplayedontheleftandverticalontheright.
Armed modes are displayed in white and active in green or magenta (if the mode reference is provided by the
GPSnavigationfunction).
Command
Bars
GPS is Selected
Navigation
Source
Selected
Altitude

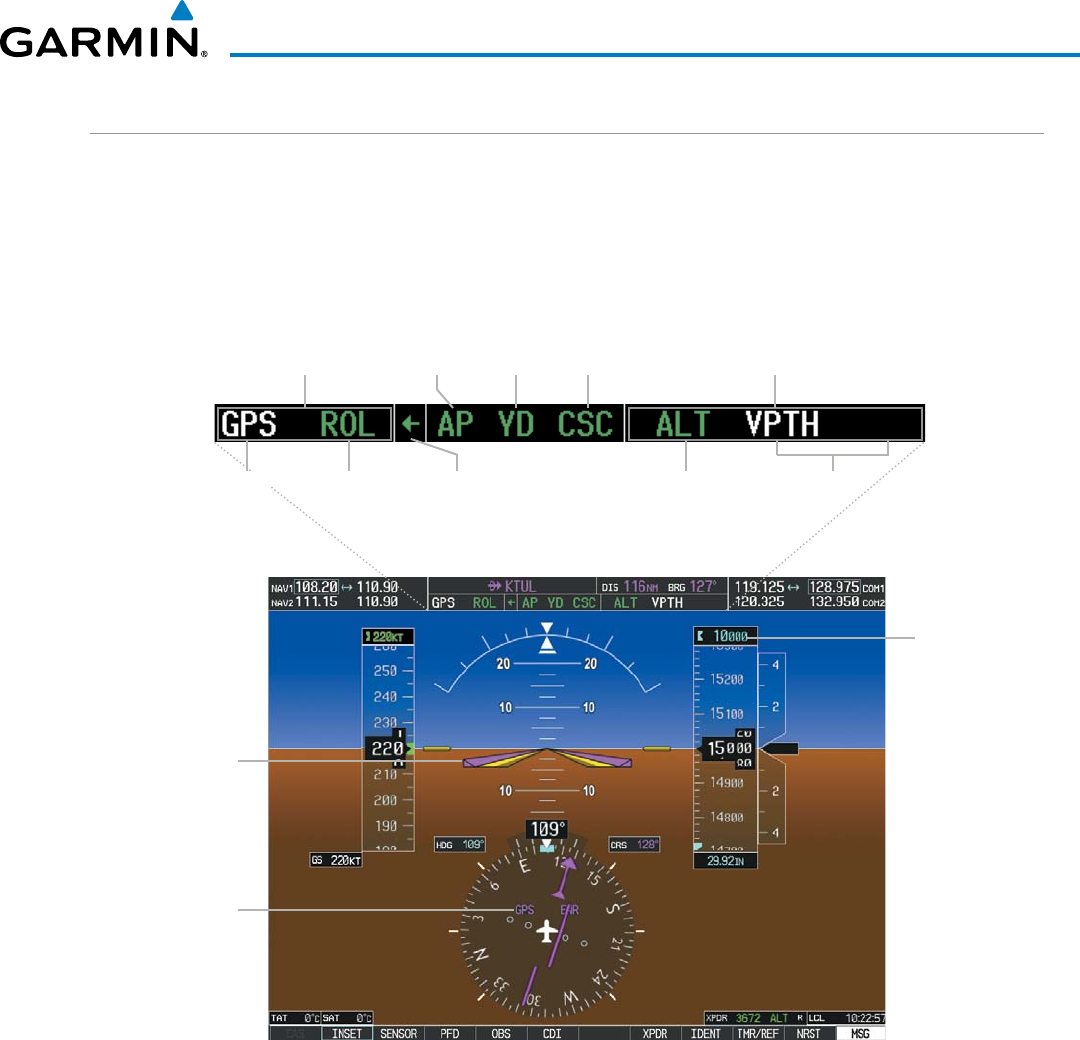

Figure 7-2 PFD AFCS Display
AFCS Status Box
Yaw
Damper
Status
Flight Director
Indicator Arrow
Lateral Modes
Active
Autopilot
Status
Active
Vertical Modes
Armed
Current
Speed
Control
Armed
